Recently, ZENDURE has launched a new 65W gallium nitride charger - SuperPort S3 Pro. This charger continues the Roman column appearance design, equipped with foldable plugs and the popular 2C1A interface. At first glance, many people may think there is no difference, but after comparison, there are still significant differences.

Although the ZENDURE 65W gallium nitride charger SuperPort S3 is already very small, the Pro version is even smaller. As a multi-port charger, its power density even reaches 0.97W/cm³, making it very compact and portable. Secondly, it supports a dual-port charging strategy of 45W+20W, which can simultaneously meet the fast charging requirements of both MacBook and iPhone 12. Below, the Charging Head Network will conduct a detailed disassembly of this new product from ZENDURE to take a look at its specific design and materials.

I. Appearance of ZENDURE 65W Gallium Nitride Pro Version

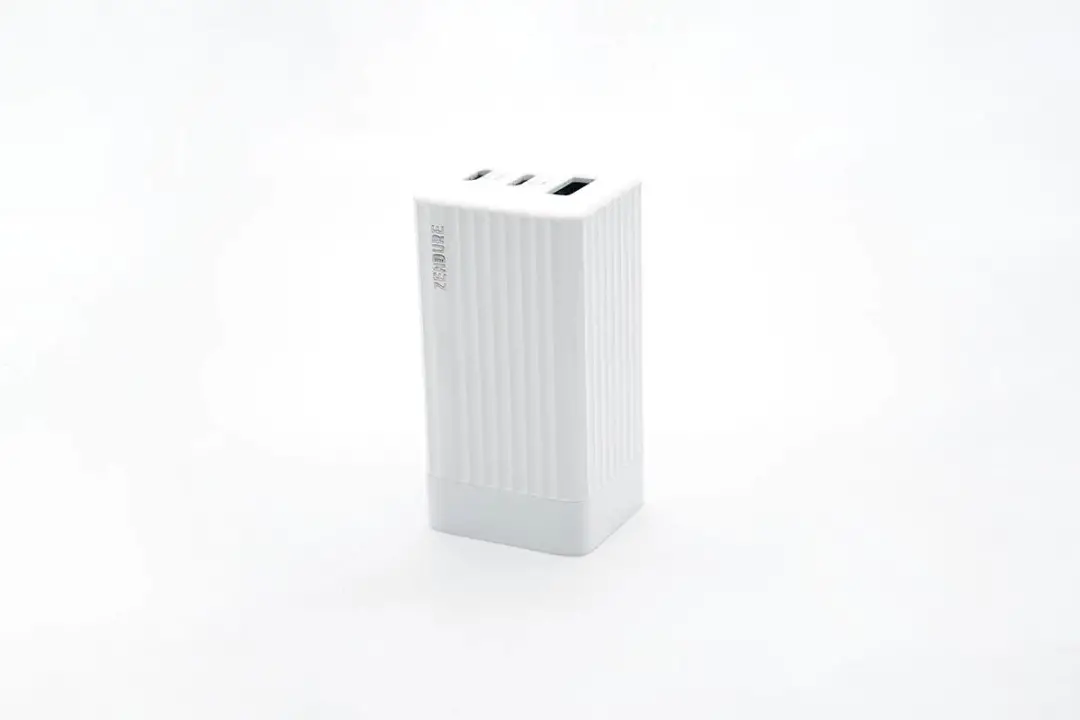

The ZENDURE SuperPort S3 Pro gallium nitride charger continues the Roman column appearance design, is all white and very compact.

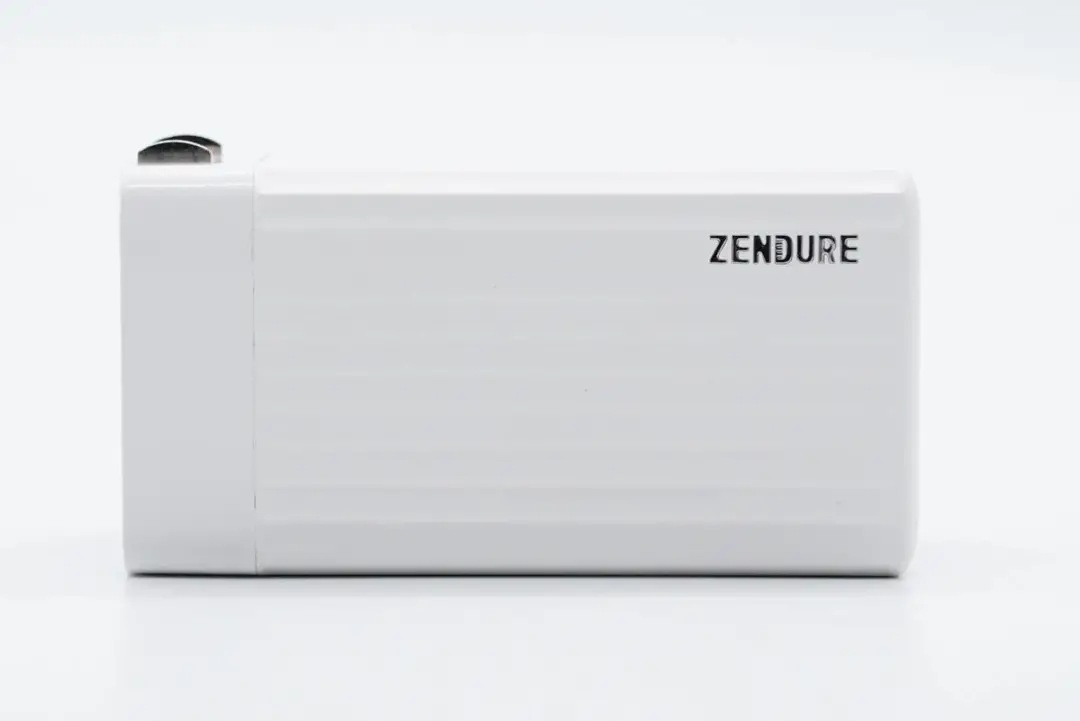

The body is equipped with the ZENDURE brand.

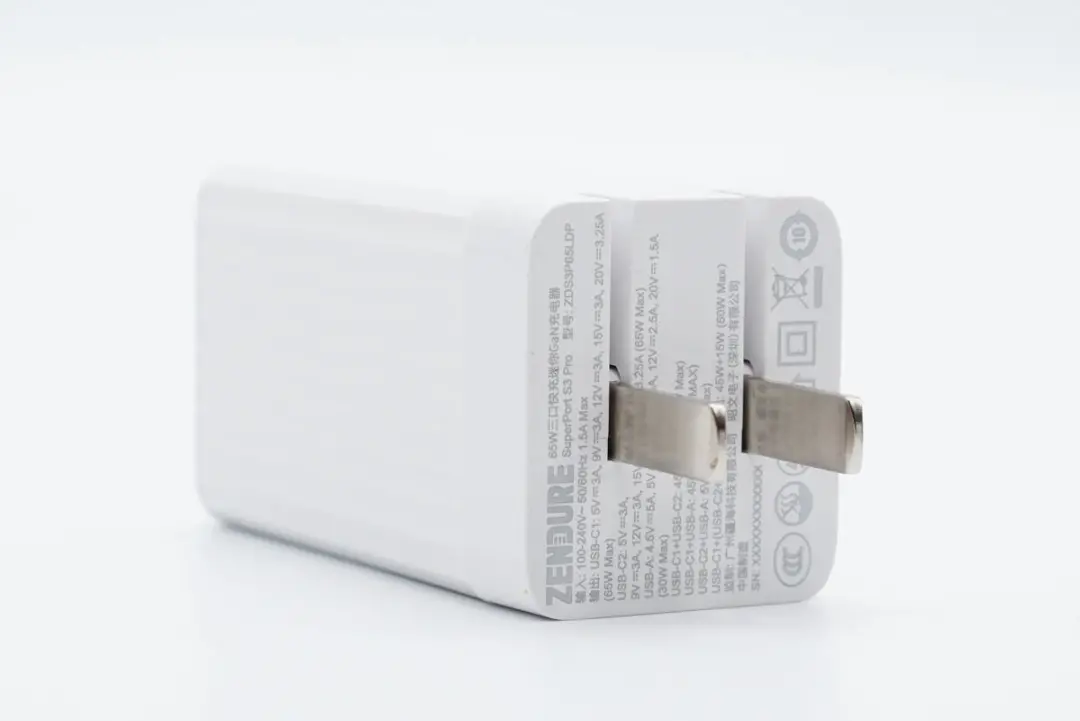

The input end is equipped with foldable national standard pins, which are convenient to carry and will not scratch other devices in the bag.

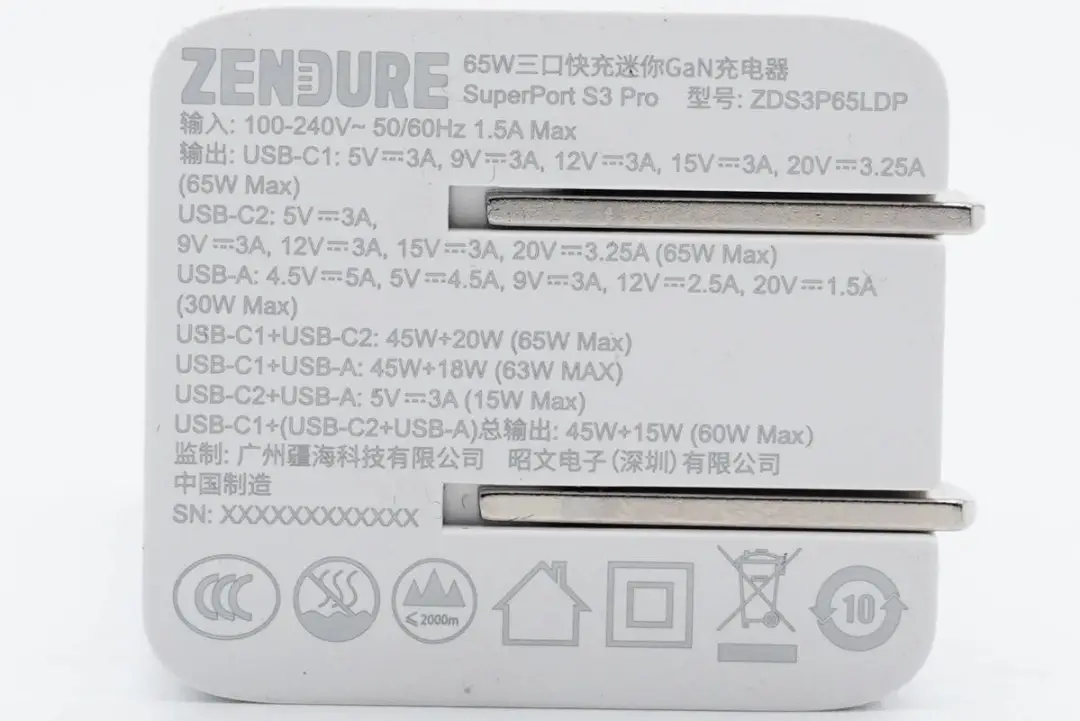

The parameters of the charger are marked on the input terminal shell

Product Name: ZENDURE 65W Three-Port Fast Charging Mini GaN Charger SuperPort S3 Pro

Model: ZDS3P65LPD

Input: 100-240V~50/60HZ 1.5A

Single-port output

USB-C1/C2:5V3A, 9V3A, 12V3A, 15V3A, 20V3.25A (65W Max)

USB-A: 4.5V5A, 5V4.5A, 9V3A, 12V2.5A, 20V1.5A (30W Max)

Dual-port output

C1+C2:45W+20W (Maximum 65W)

C1+A: 45W+18W (Maximum 63W)

C2+A: 5V3A (15W Max)

Three-port output

C1+C2+A: 45W+15W (maximum 60W)

Manufactured by: Guangzhou Jianghai Technology Co., LTD

Manufacturer: Zhaowen Electronics (Shenzhen) Co., LTD

The product has passed the 3C certification.

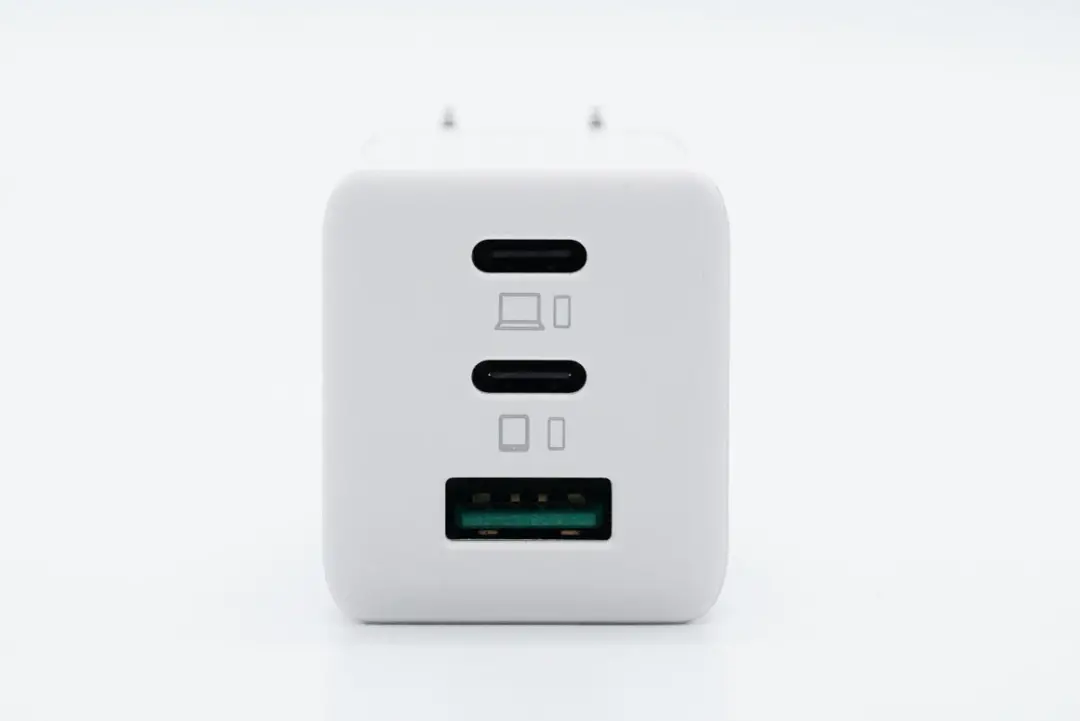

The top of the body is equipped with a 2C1A interface. The black rubber core of the USB-C port does not expose copper, and the green rubber core of the USB-A port. Additionally, the logos of laptops, tablets and mobile phones are printed beside the C port.

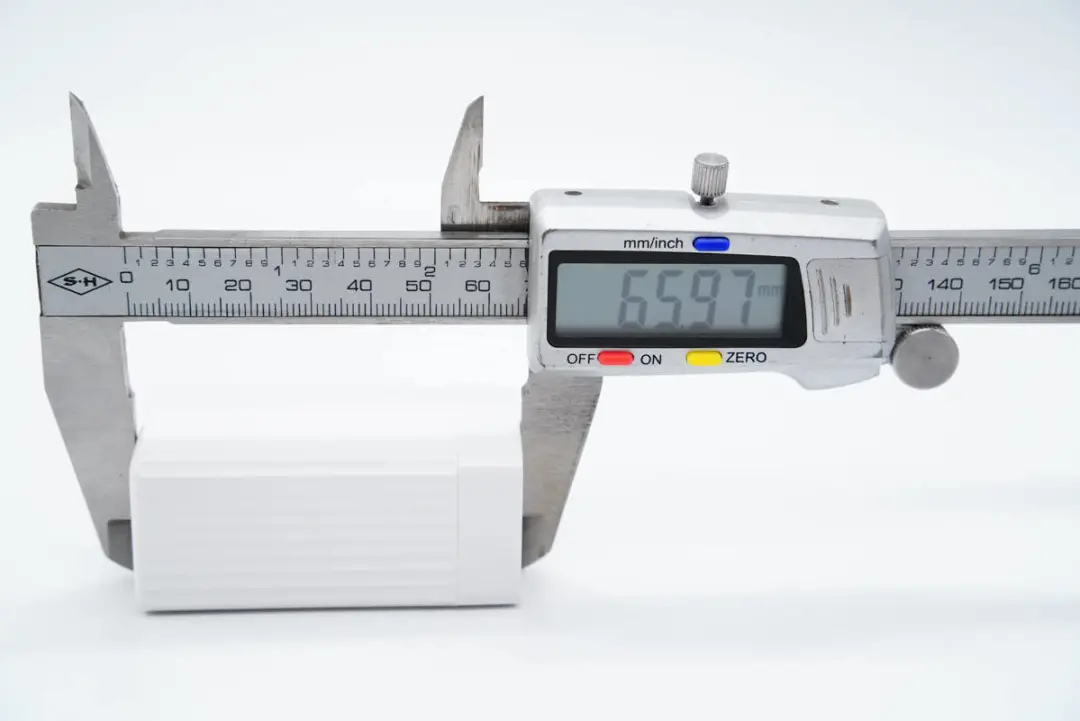

The measured length of the charger body using a vernier caliper is 65.97mm.

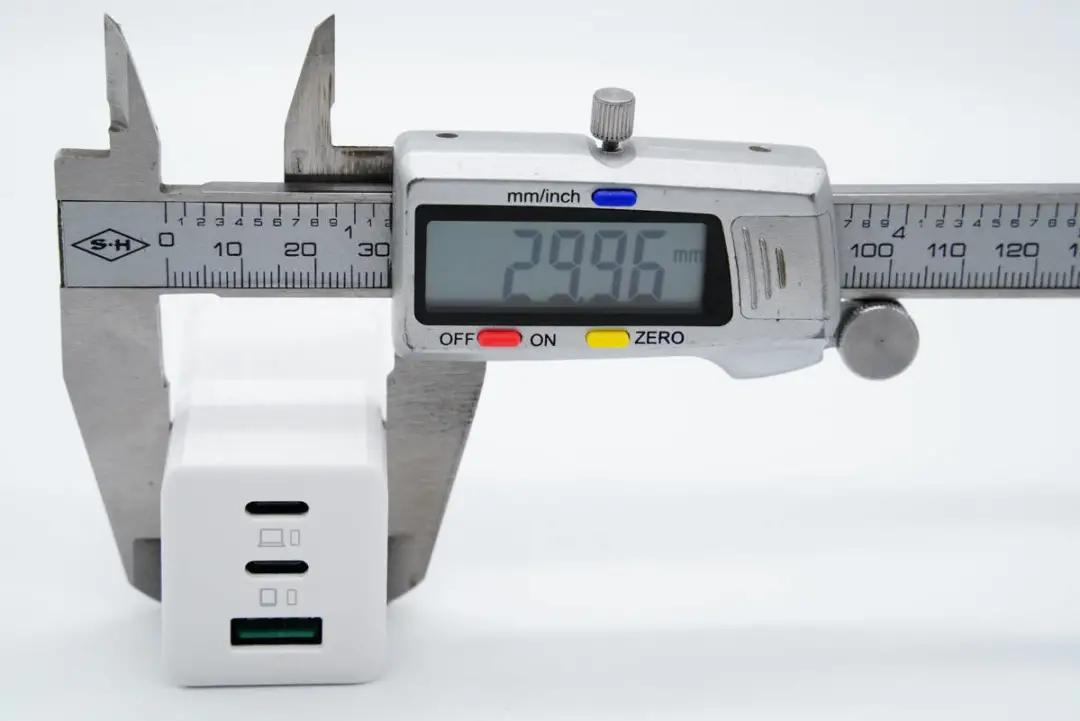

The width is 29.96mm.

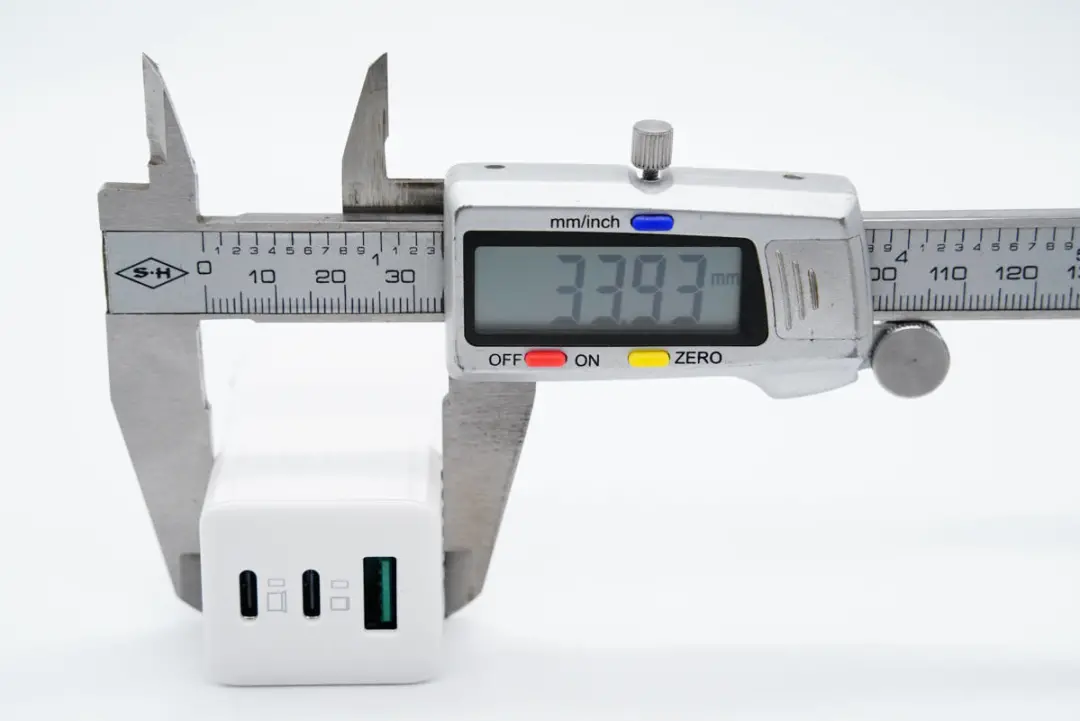

The thickness is 33.93mm. The volume of the charger can be calculated as 67.06cm³ through three-dimensional means. Therefore, the power density is approximately 0.97W/cm³, making it the best among multi-port gallium nitride chargers.

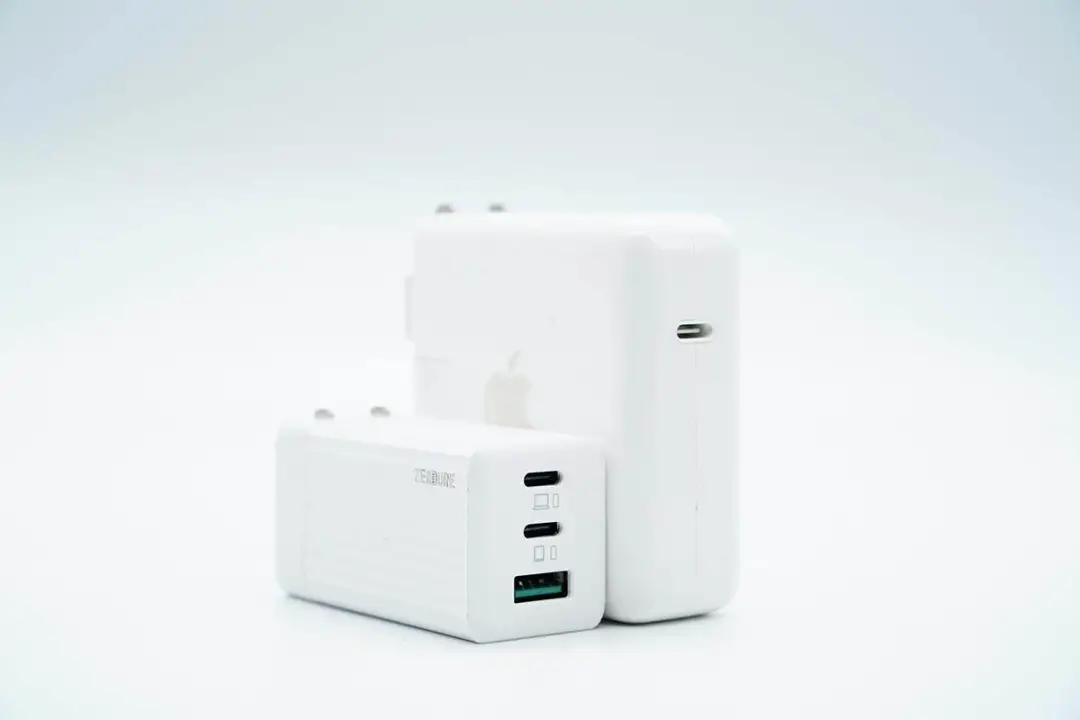

Compared with the 61W charger of Apple, its size advantage is very obvious.

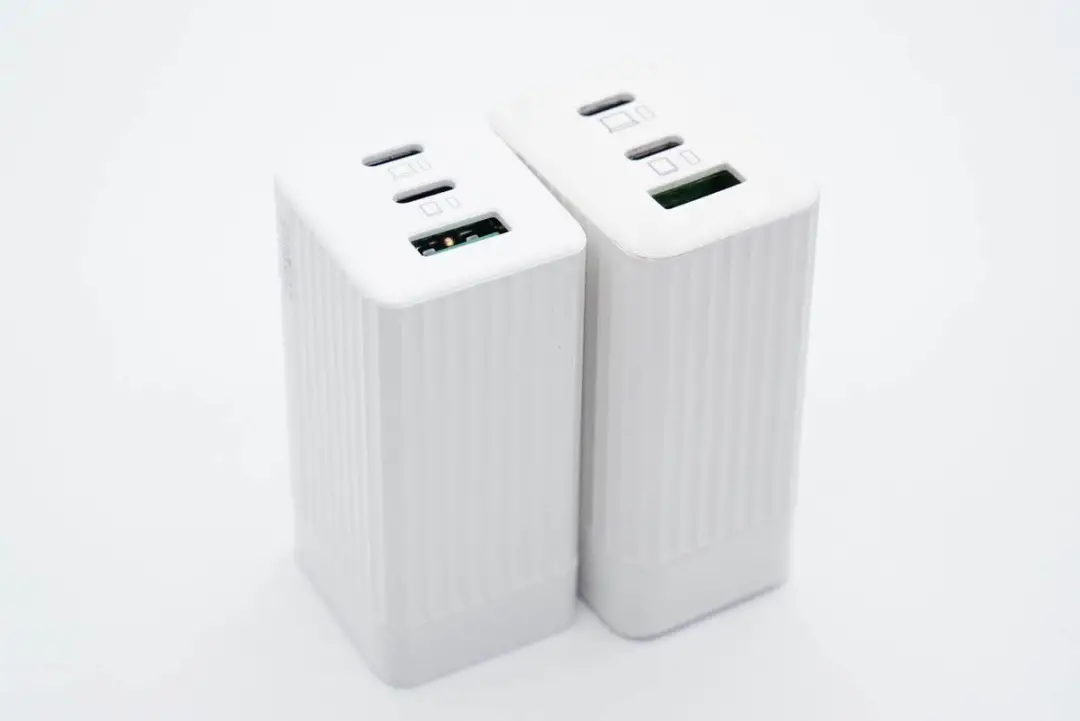

Compared with the SuperPort S3 version, the Pro version is smaller in size.

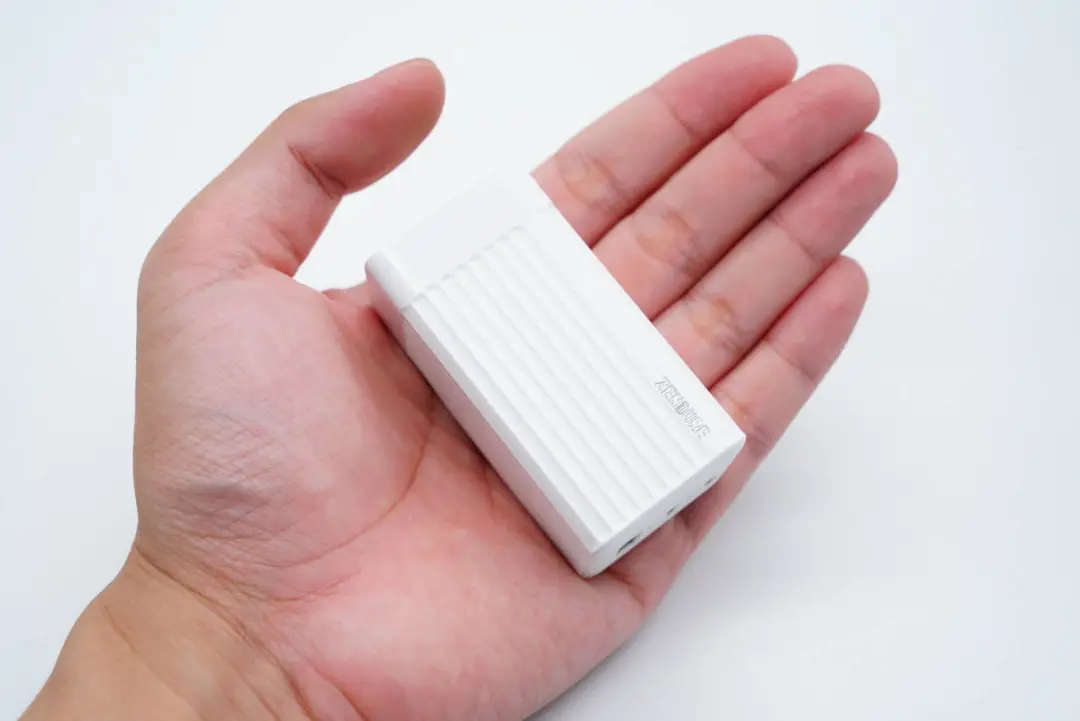

The intuitive feeling when held in hand.

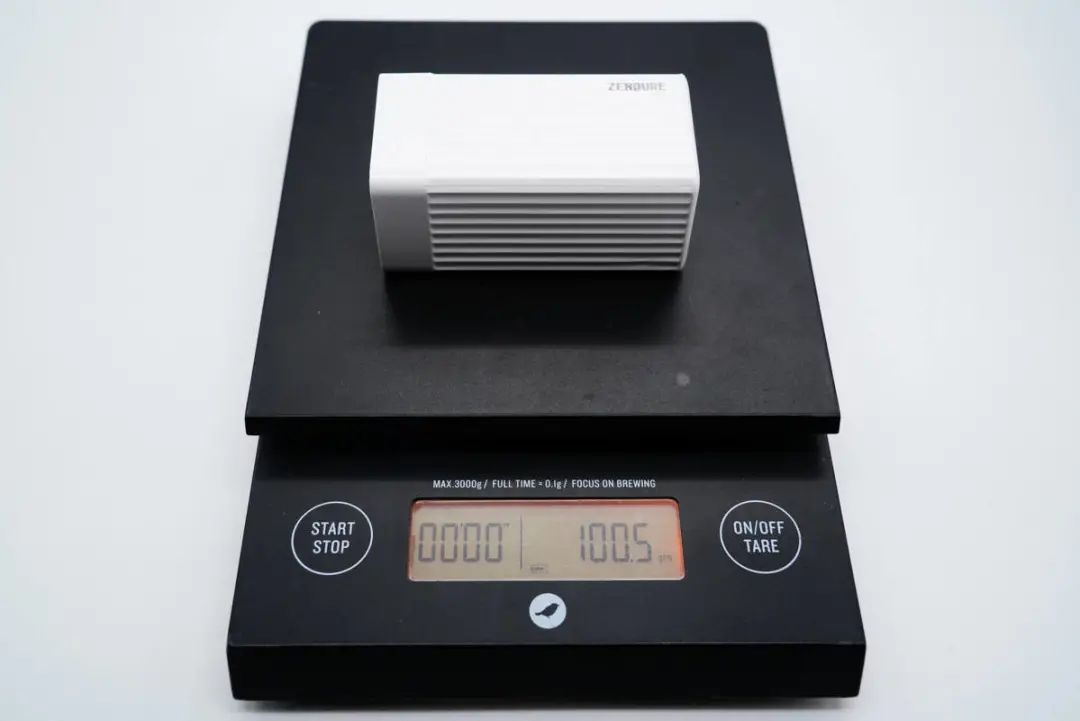

The net weight of the charger is approximately 101g.

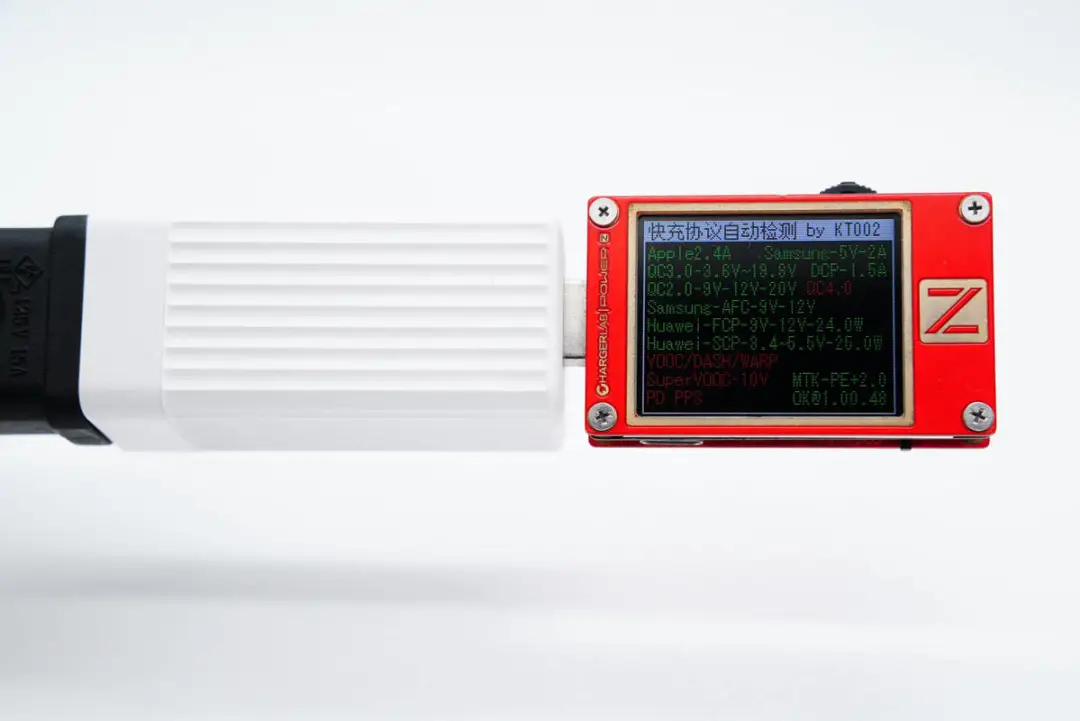

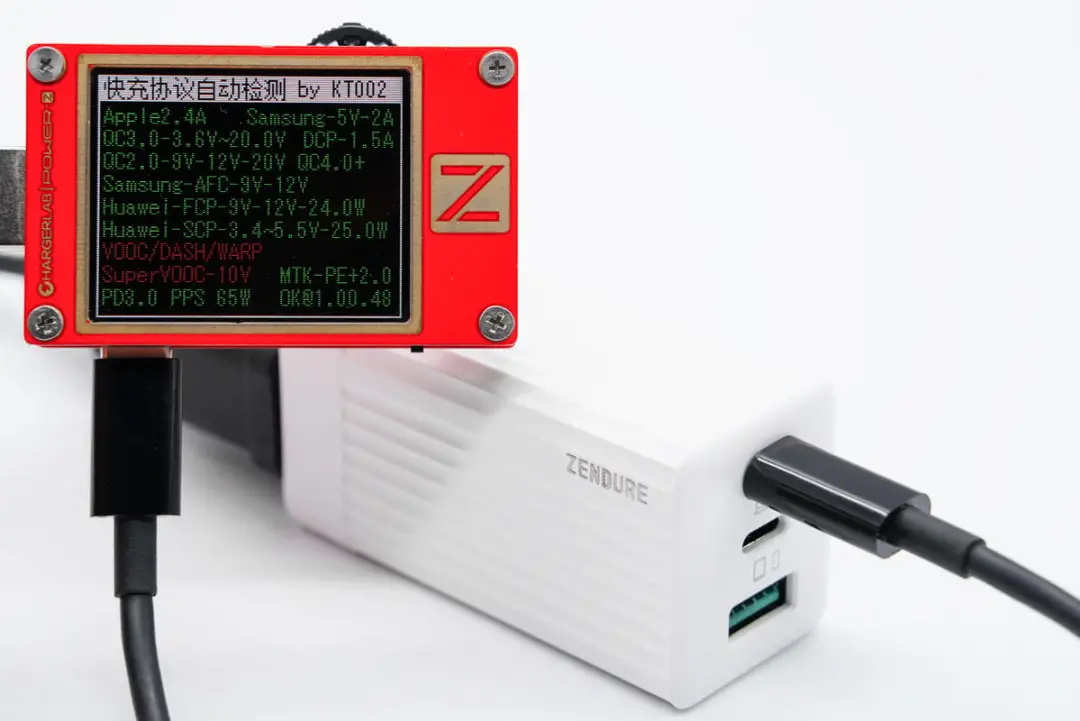

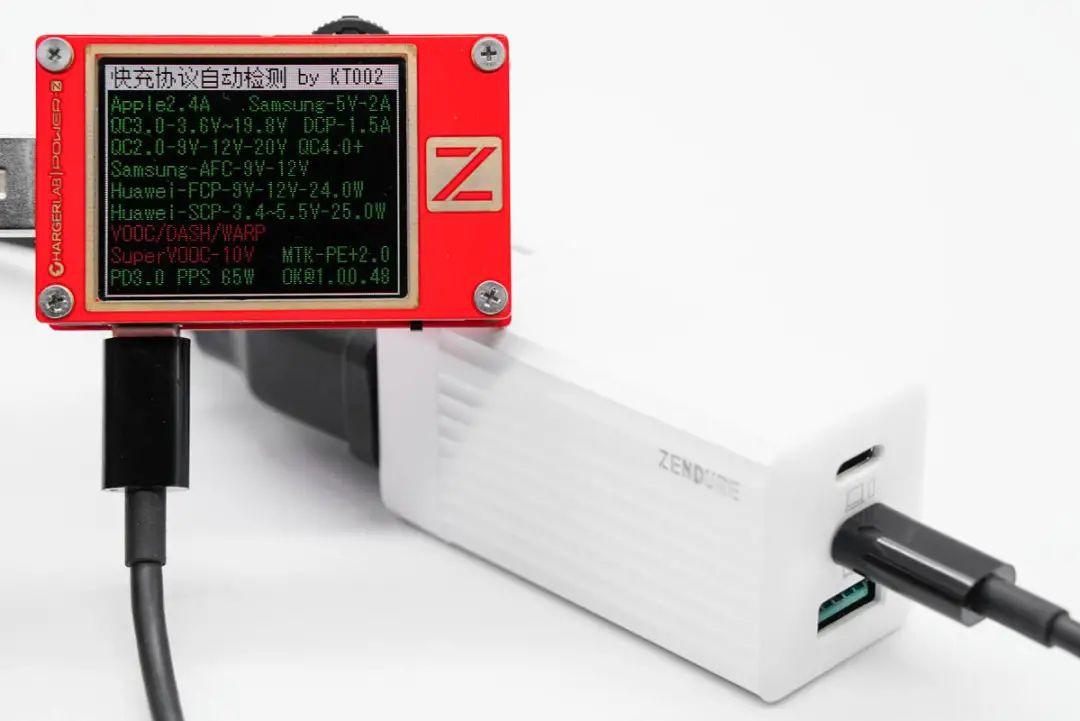

The output protocol of the USB-C1 port was detected using ChargerLAB POWER-Z KT002, showing support for Apple 2.4A, Samsung 5V2A, DCP protocols, as well as QC2.0/3.0, AFC, FCP, SCP, PE2.0, PD3.0, and PPS fast charging protocols. It has excellent compatibility.

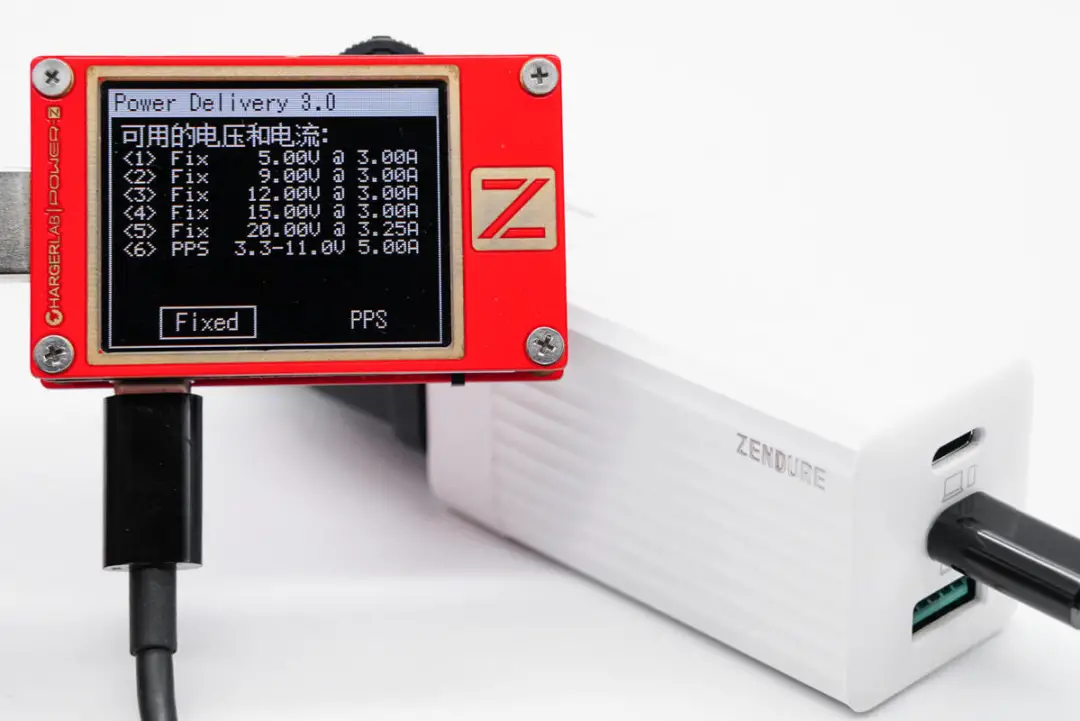

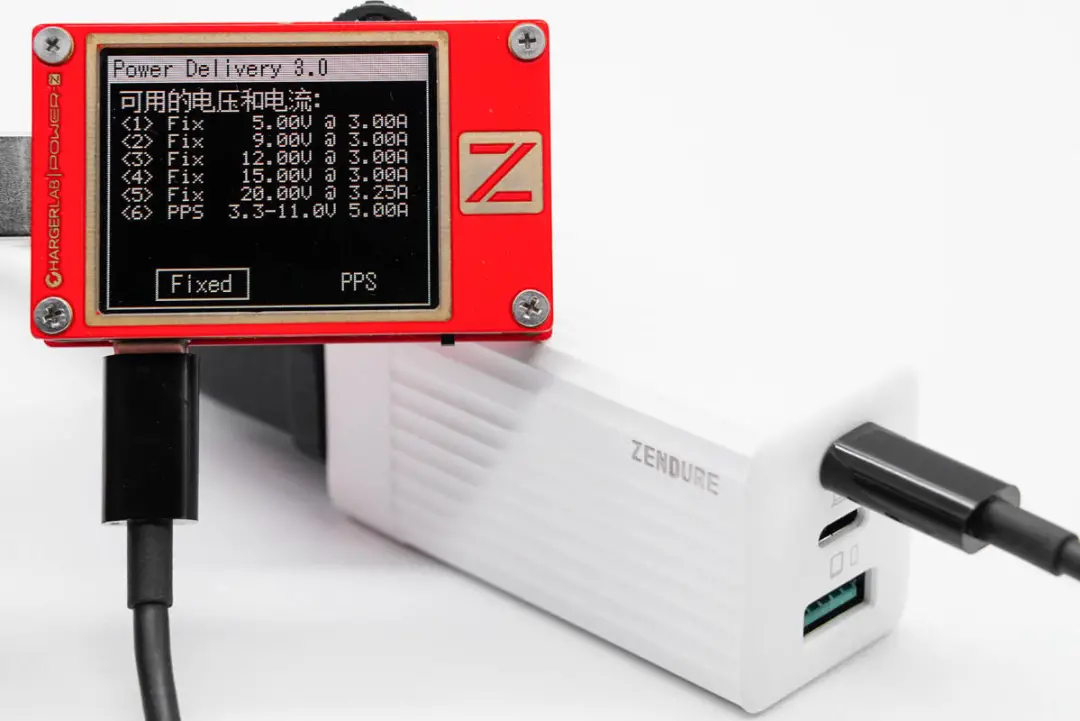

In addition, the PDO message indicates that port C1 also has five fixed voltage ranges: 5V3A, 9V3A, 12V3A, 15V3A, and 20V3.25A, as well as one PPS voltage range from 3.3 to 11V5A.

The protocol of port C2 was measured using KT002 and found to be the same as that of port C1.

In addition, the PDO messages are the same, that is, the single-port output performance of the two C ports is exactly the same, supporting power blind insertion, making it more convenient to use.

The USB-A port supports protocols such as Apple 2.4A, QC2.0/3.0, AFC, FCP, SCP, and PE2.0, and has excellent compatibility as well.

II. Disassembly of ZENDURE 65W Gallium Nitride Pro Edition

Disassemble the body shell, seal and fix the pins with screws, and connect and power on the PCB board through wires.

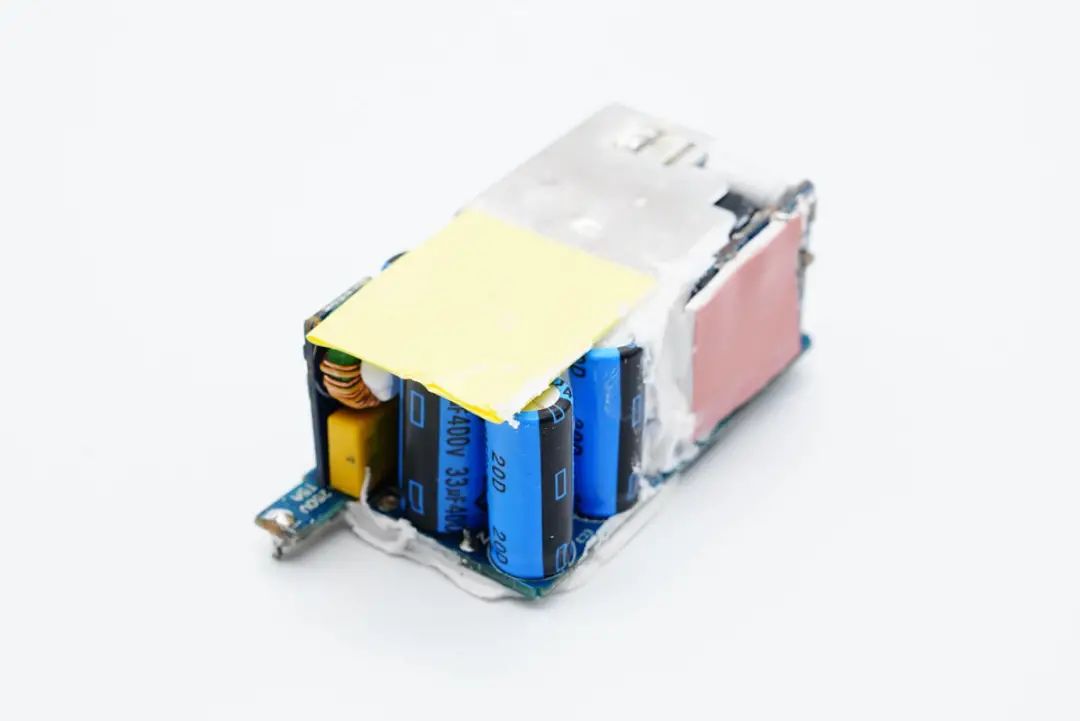

The top of the PCBA module is equipped with a heat sink, and the high-voltage side is also insulated with adhesive tape. The back of the PCB main board and the secondary voltage reduction small board is attached with thermal pads to help with heat conduction.

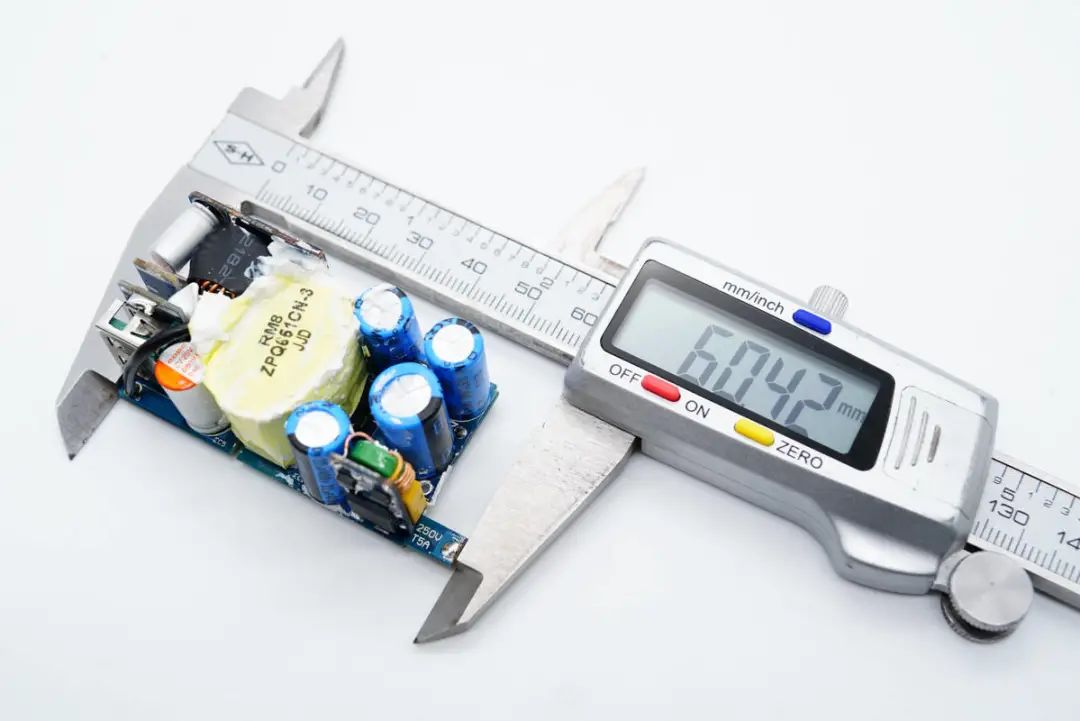

The length of the PCB mainboard was measured to be 60.42mm using a vernier caliper.

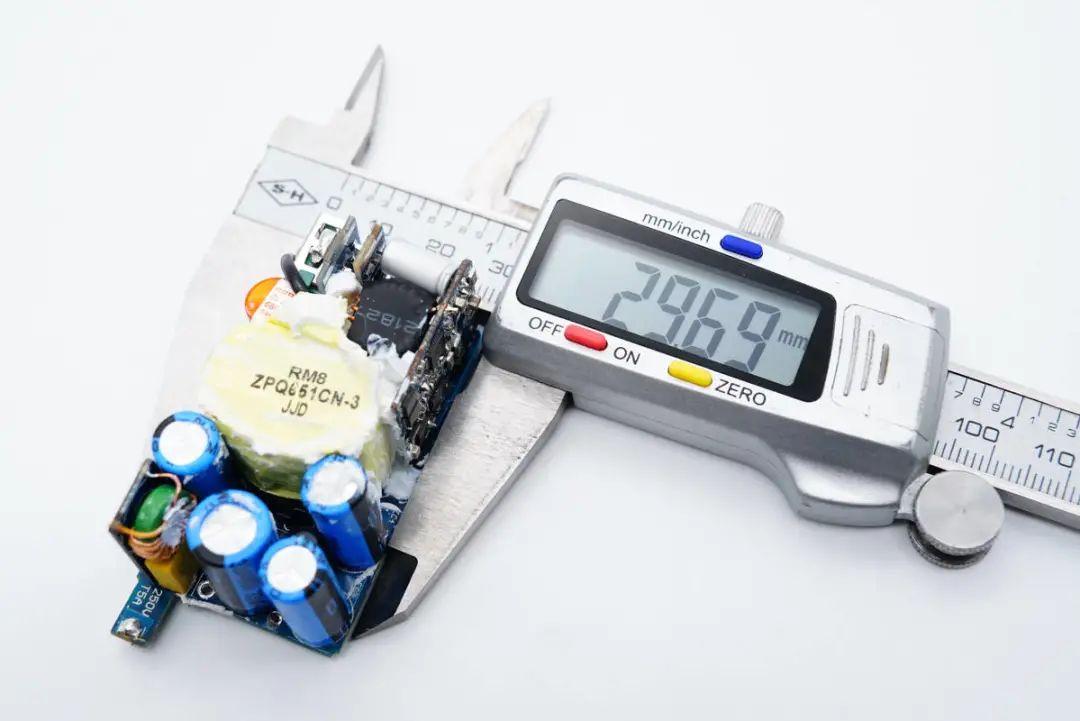

The width is 29.69mm.

A clear view of the front of the PCB board shows that the components are arranged in three sections at the front, middle and back, with clear layers. The three USB female sockets at the output end are all soldered onto the small board.

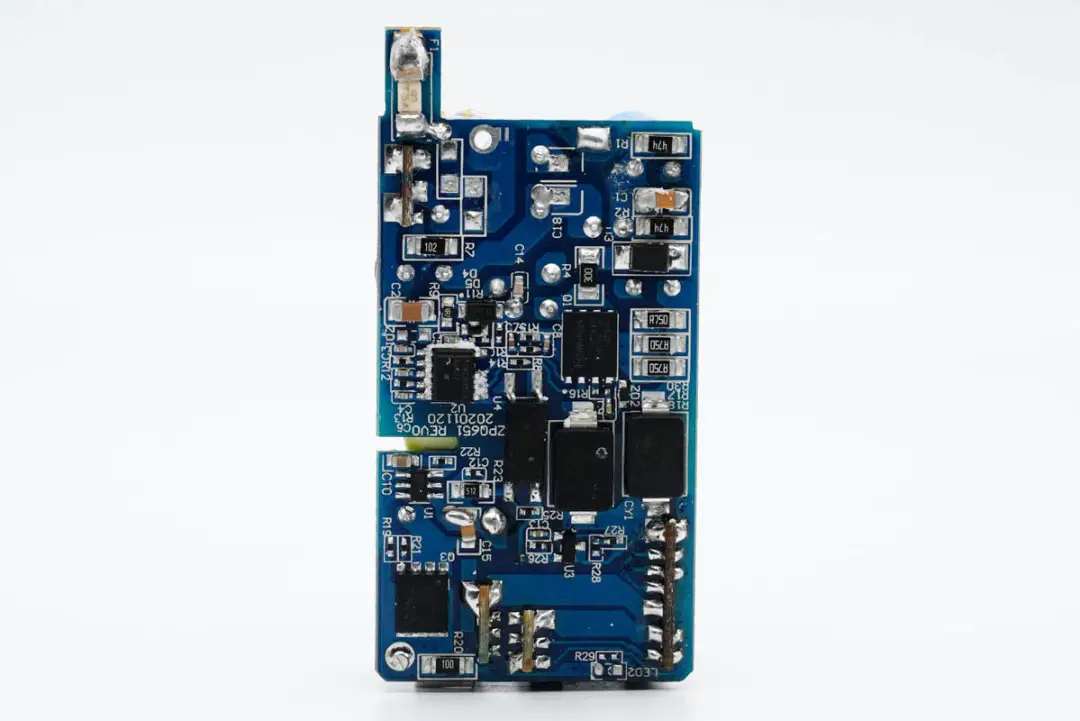

A view of the back of the PCB board: The optocoupler and two surface mount Y capacitors span the primary and secondary sides. The primary side is equipped with surface mount fuses, a main control chip, and gallium nitride power switch tubes. The secondary side is equipped with a synchronous rectifier controller and rectifier tubes.

The input end is equipped with a small board, and there are four high-voltage filter electrolytic capacitors.

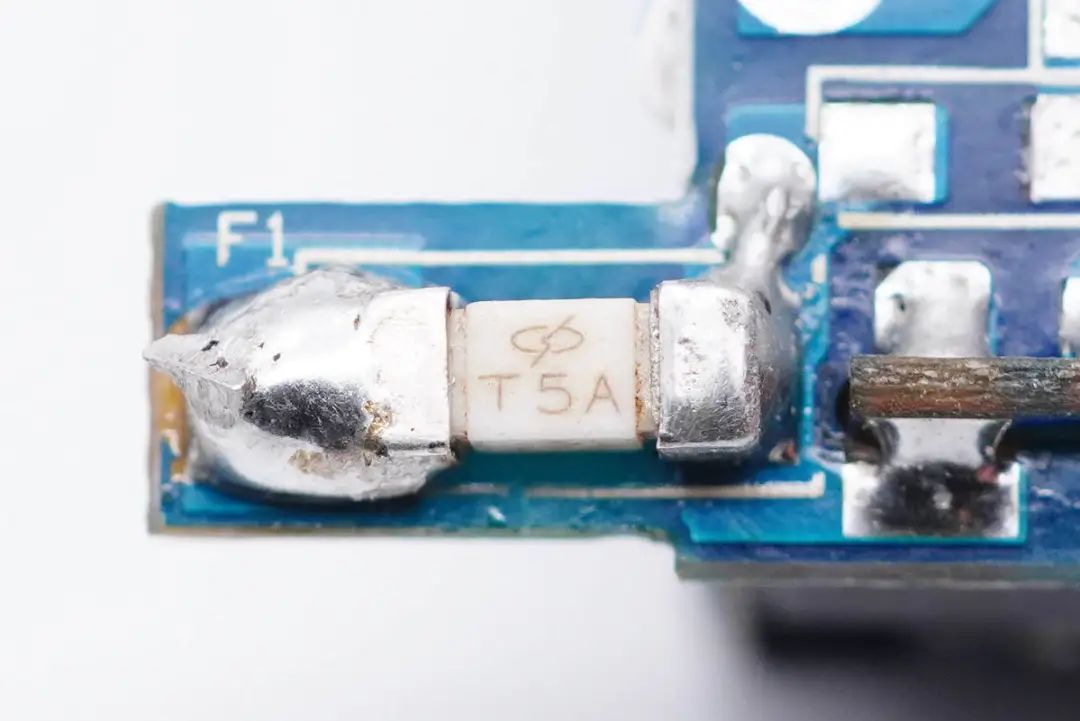

Close-up of surface mount fuse, rated current 5A.

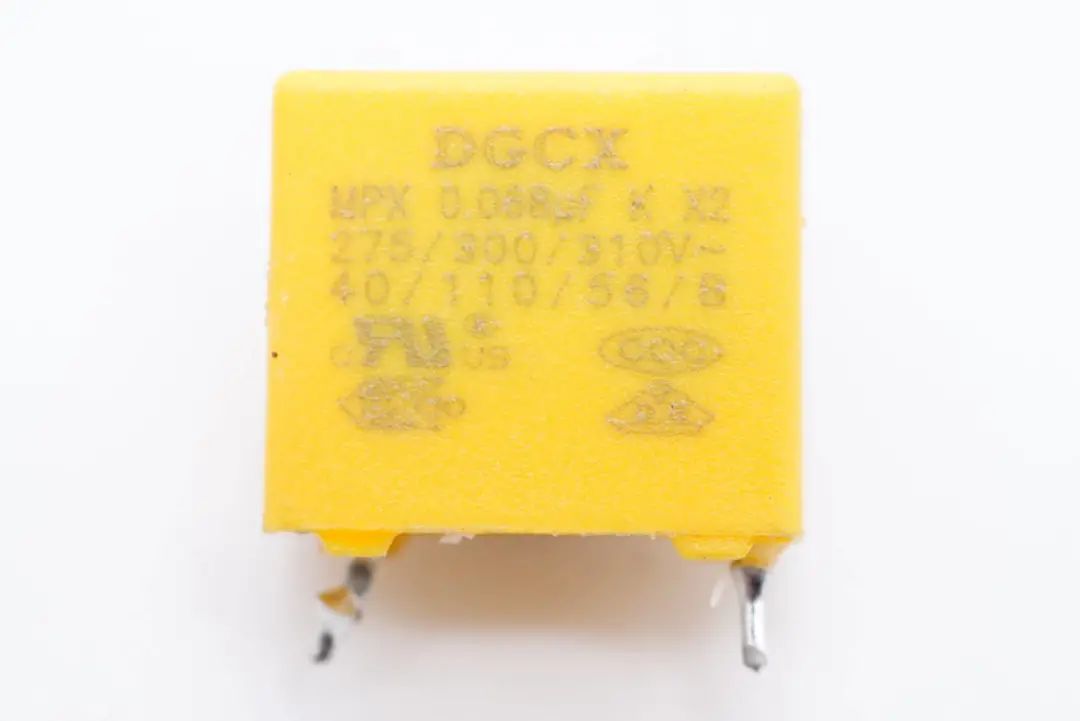

The Safety X capacitor is from Dongguan Chengxi Electronics Co., Ltd. with a capacity of 0.068μF.

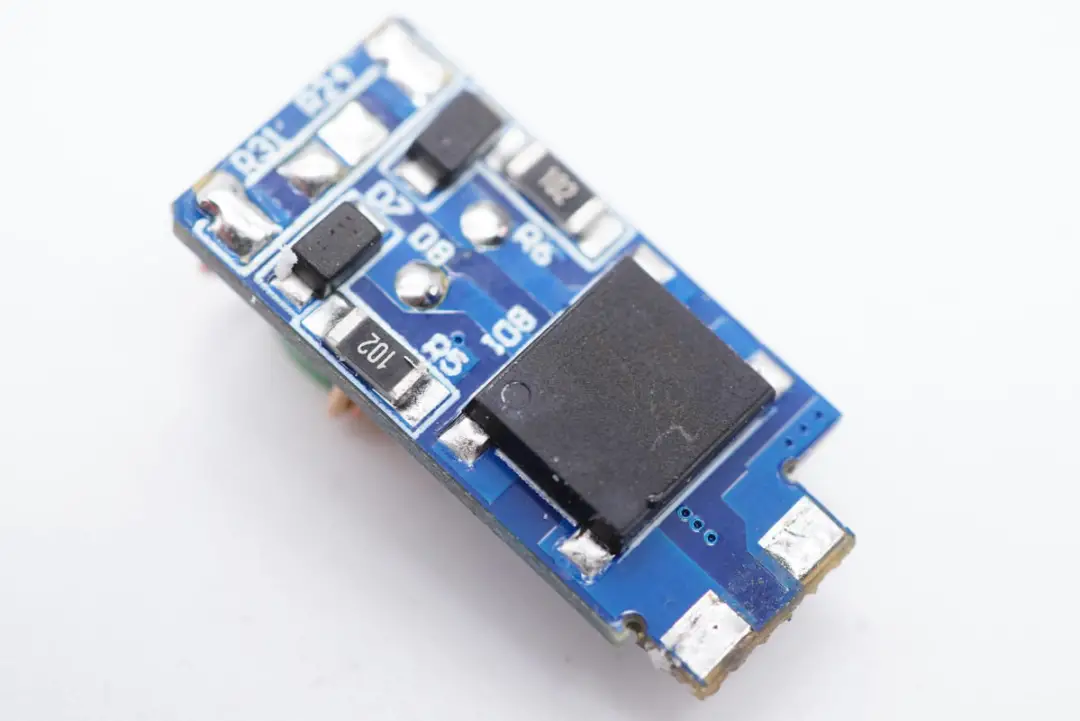

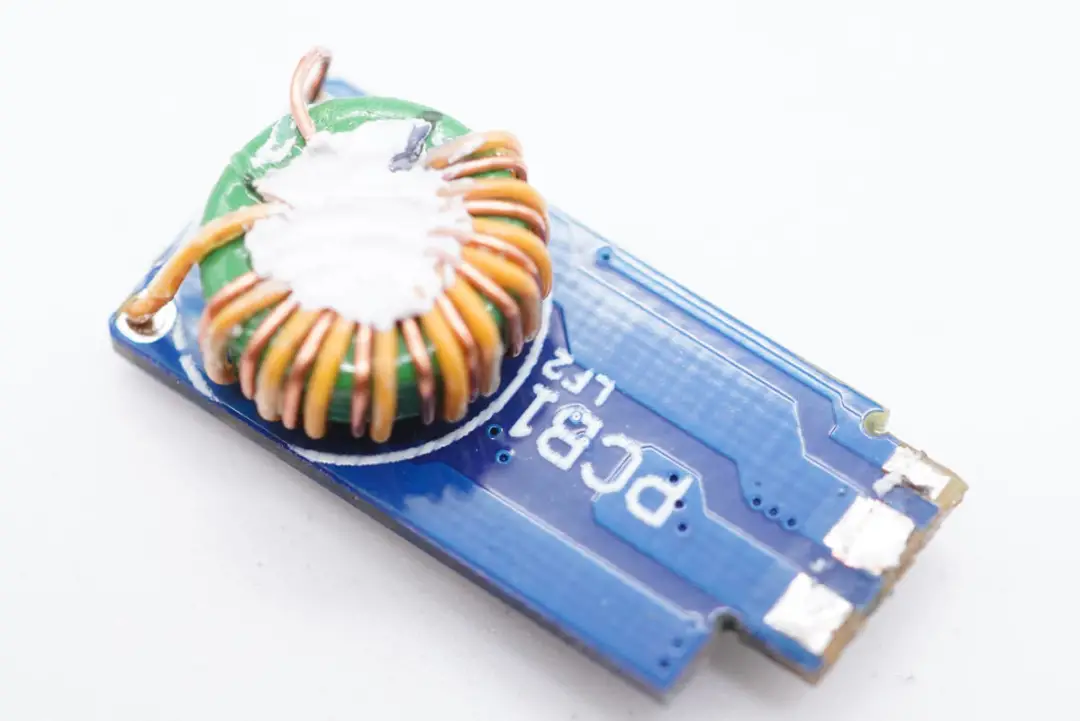

The input terminal small board is equipped with a common mode inductor.

A rectifier bridge is installed on the back.

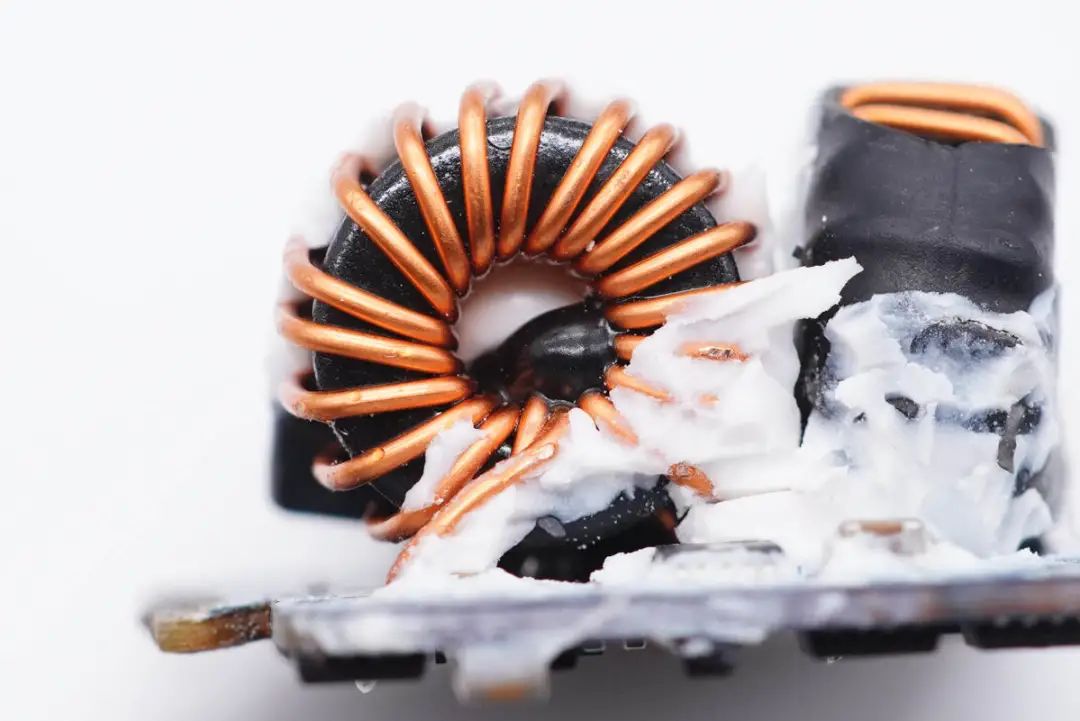

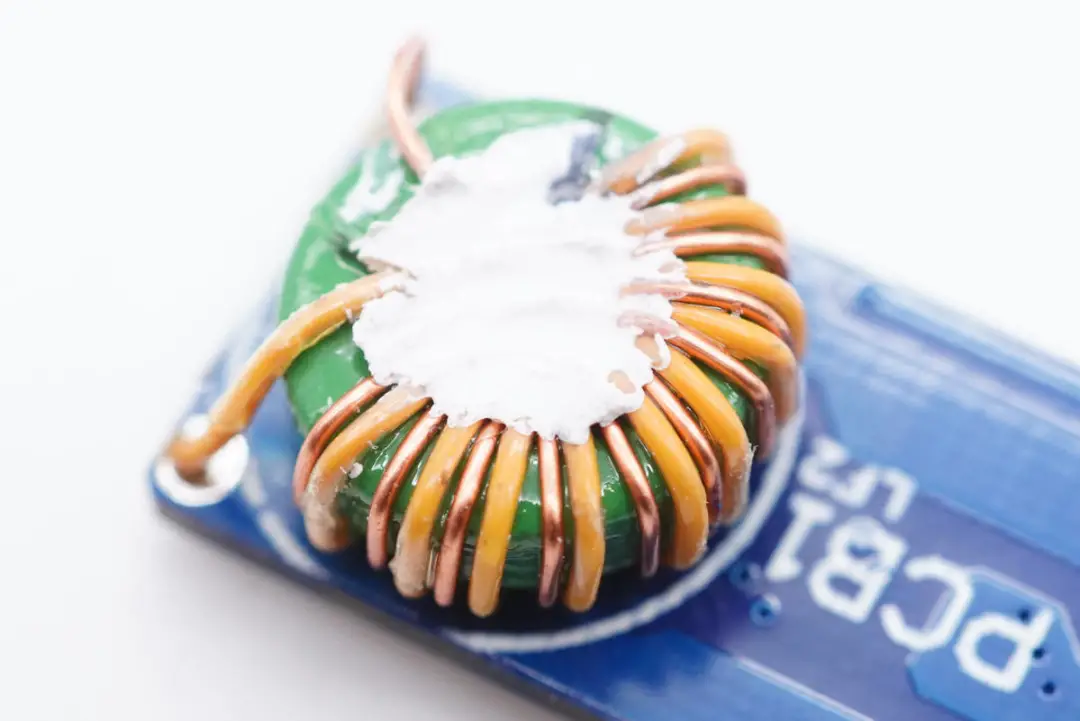

Close-up of common mode inductor, double-wire winding, used for filtering EMI interference.

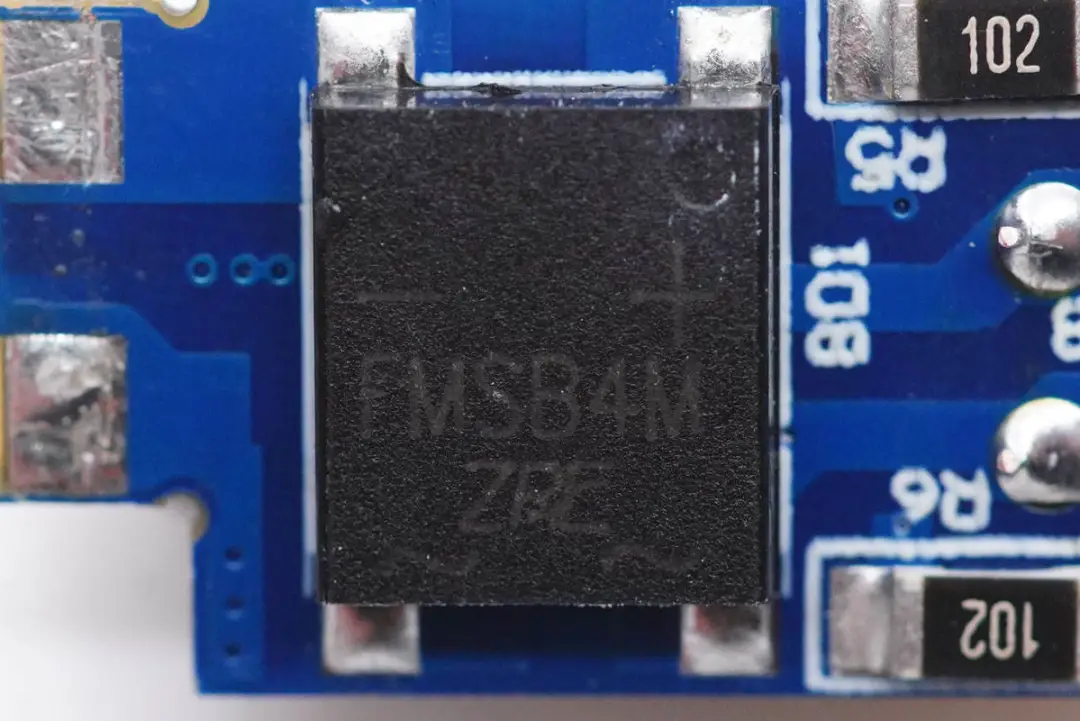

Close-up of the FMSB4M rectifier bridge.

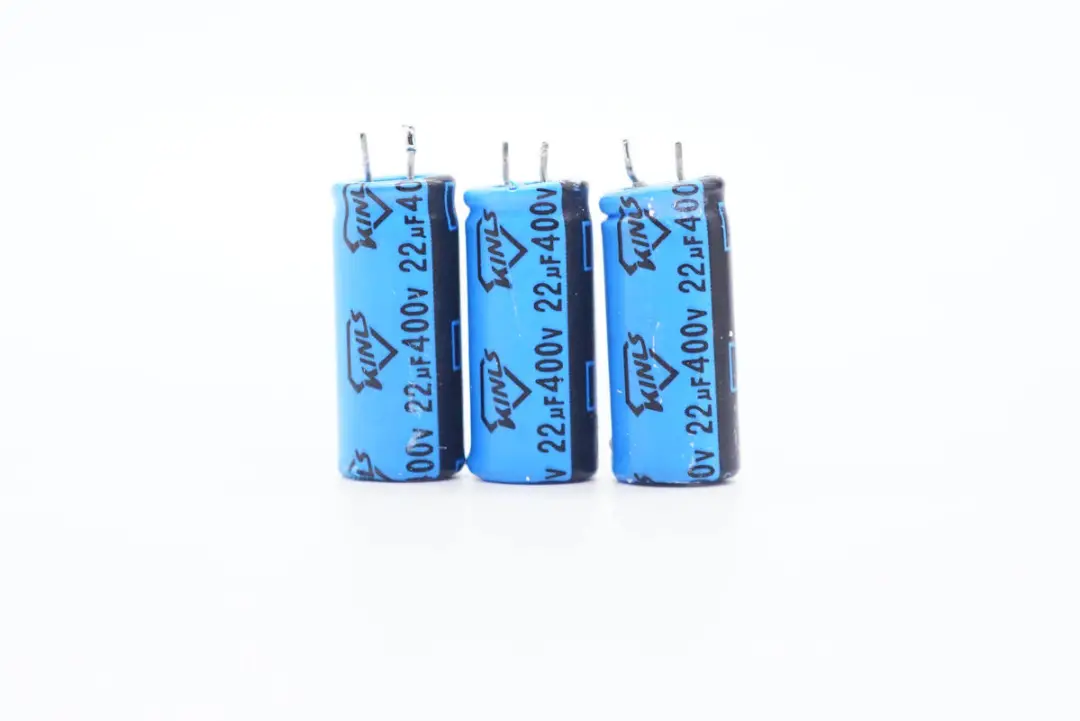

All four high-voltage filter electrolytic capacitors are from Guangdong Sapphire Industry Co., LTD., among which three have a specification of 400V 22μF.

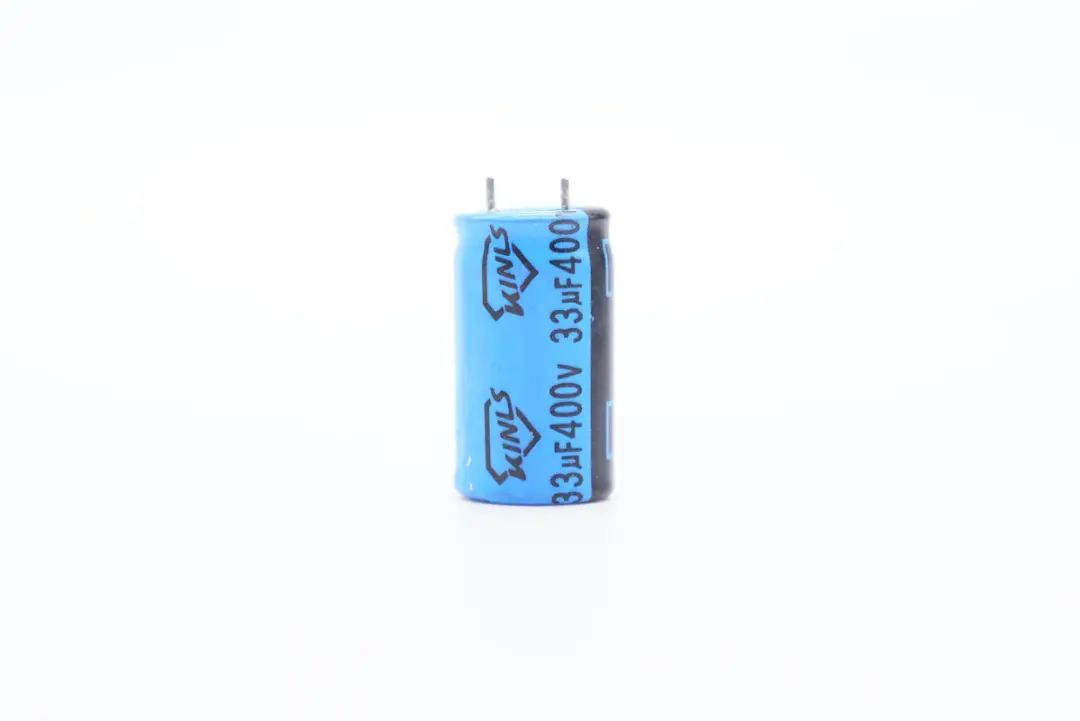

One piece has a specification of 400V 33μF.

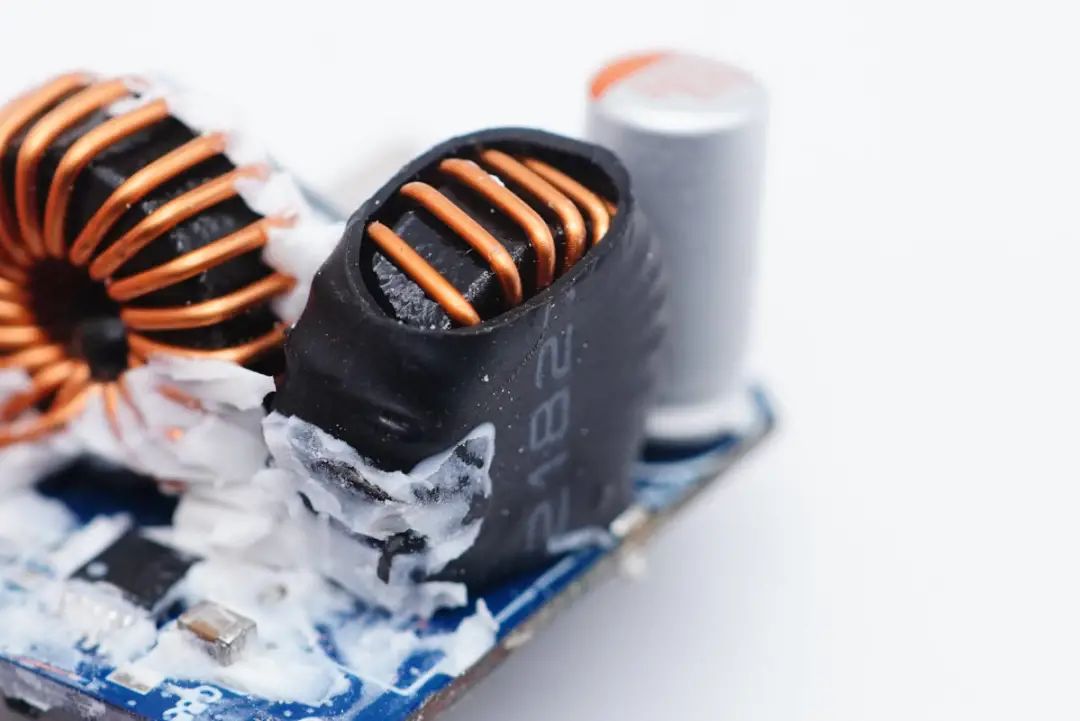

Close-up of the E-shaped inductor.

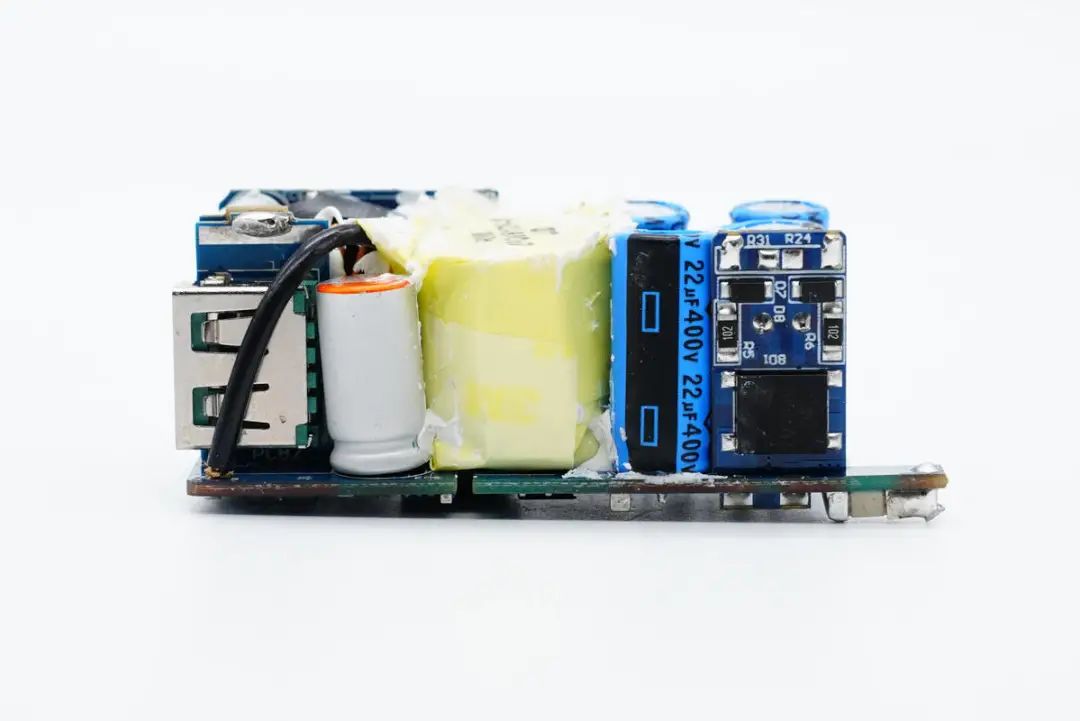

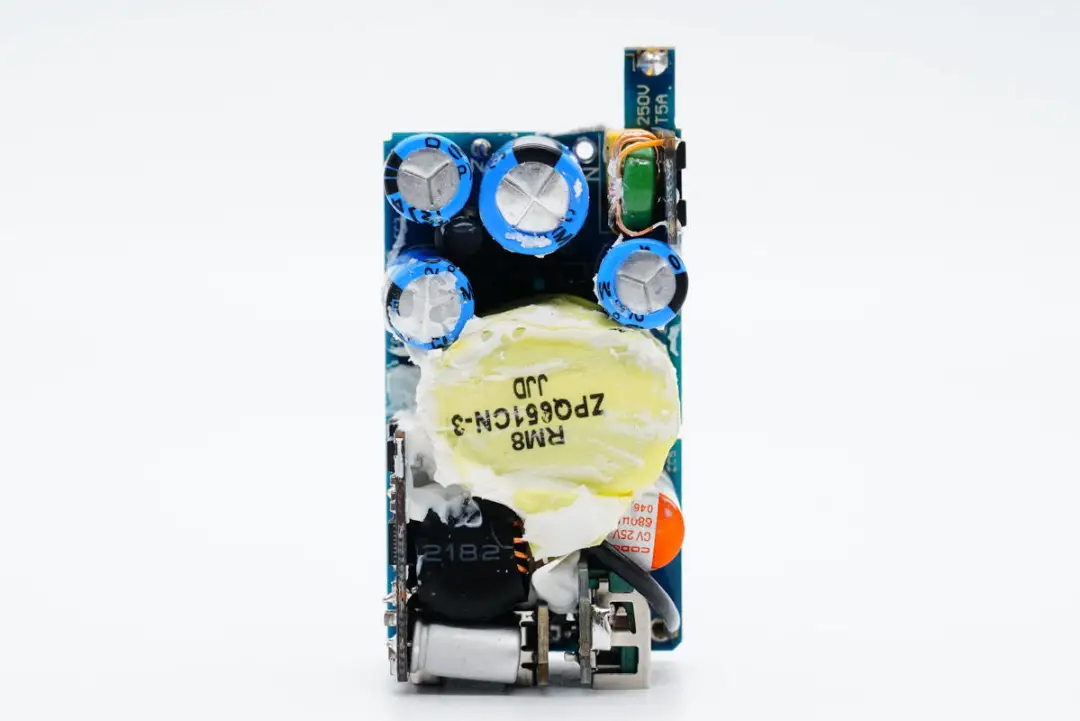

A view of the side of the PCB board: A transformer is placed in the middle, and on the left are the output filter solid-state capacitor and the USB-A female socket.

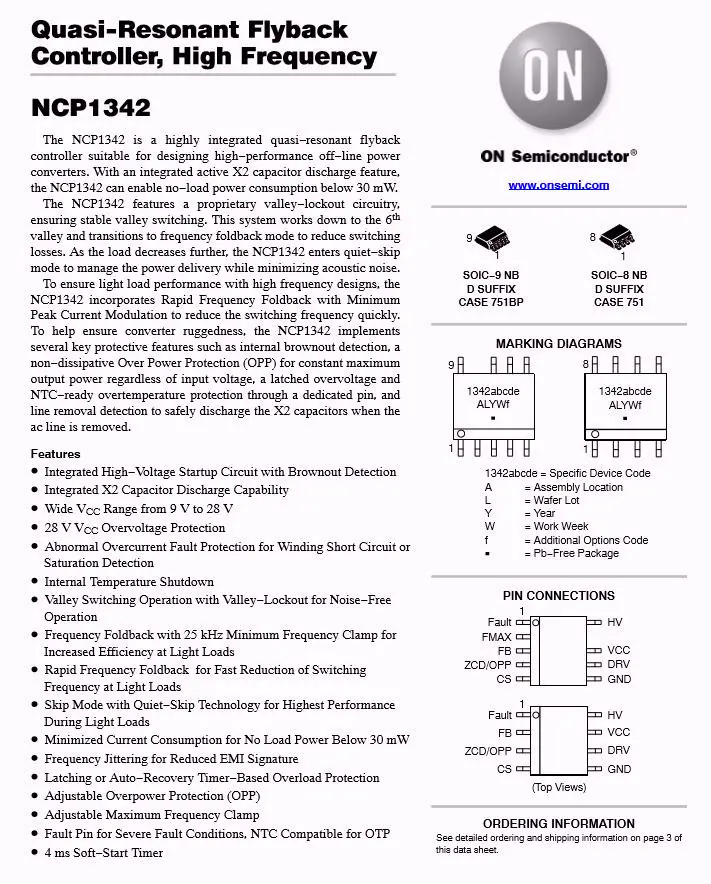

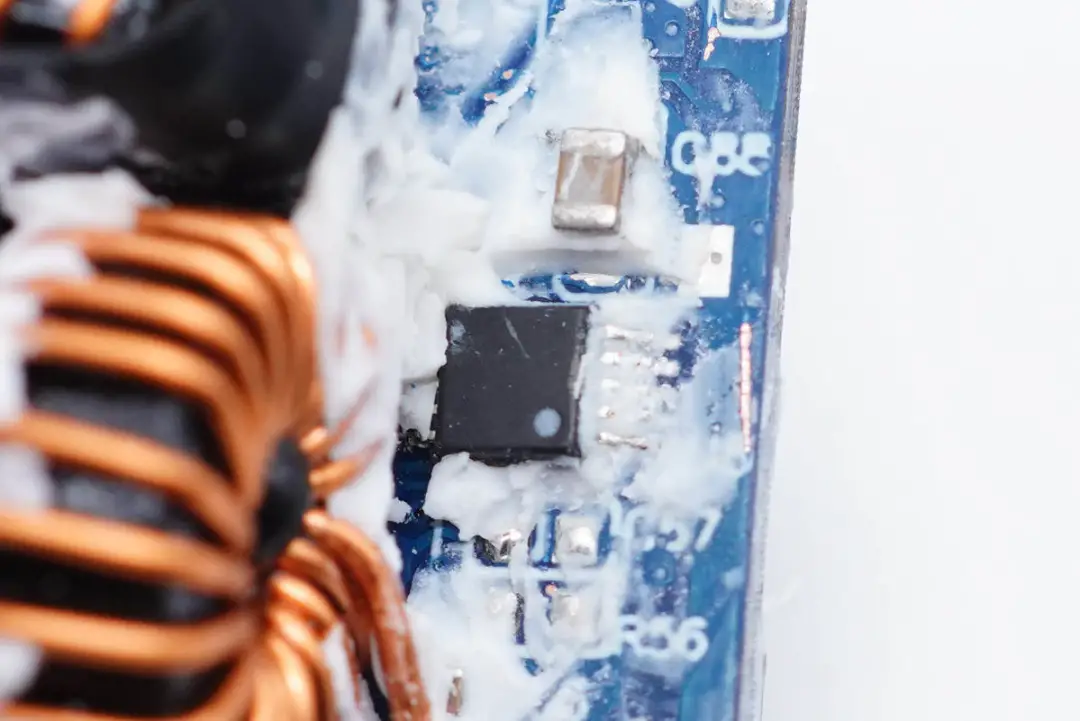

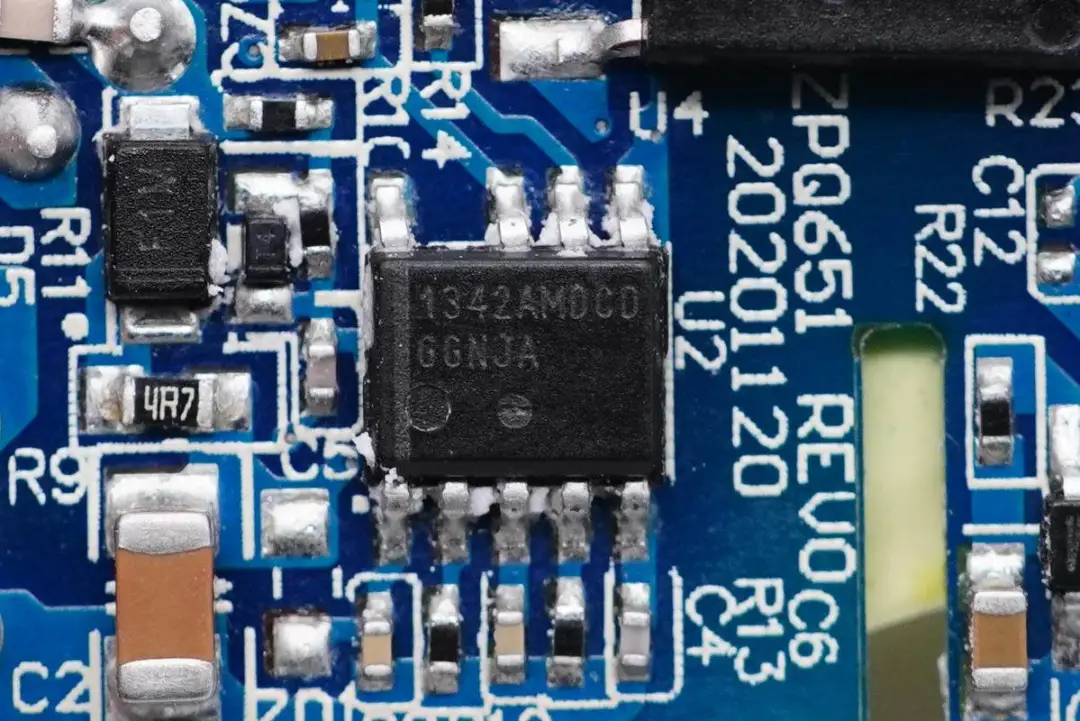

The main control chip of the charger is ON Semiconductor NCP1342, which is a high-frequency primary PWM controller with built-in active X2 capacitor discharge and multiple comprehensive protection functions, featuring extremely low standby power consumption.

Charging Head Network has learned through disassembly that Other products that adopt the ON Semiconductor NCP1342 main control chip include the Busus 65W 2C gallium nitride fast charger, the Xinmao Micro 65W 2C1A gallium nitride fast charger, the Xiaomi 55W gallium nitride charger, the ASUS 65W gallium nitride charger, the new OPPO 65W Super Flash Charge gallium nitride charger, and the OnePlus 65W Warp Flash Charger, Nuts 65W single C port gallium nitride charger, Lenovo thinkplus 65W Gallium nitride Lipstick Power Supply Pro, Xiaomi 120W Super Fast Charger, iQOO 120W Flash Charger, etc.

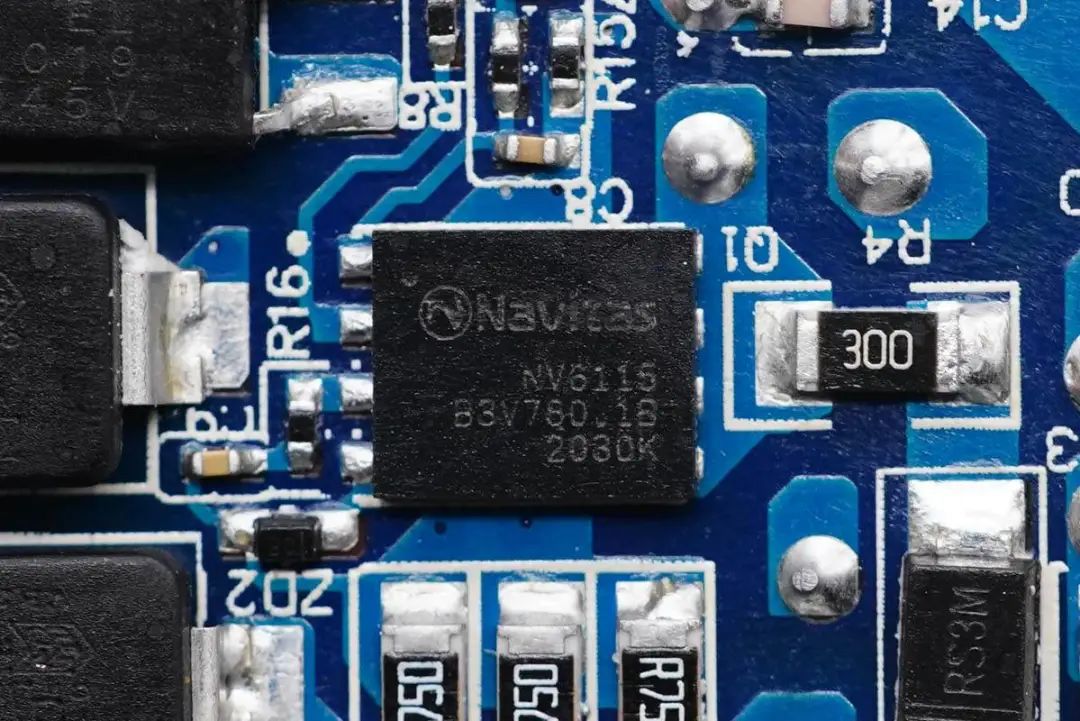

Gallium nitride power switch tubes adopt Nanomicro NV6115, which is the core component of the charger. The NV6115 features an integrated driver and complex logic control circuits, with a 170mΩ on-resistance and a withstand voltage of 650V. It supports a 2MHz switching frequency and adopts a 5*6mm QFN package, saving space. Thanks to the built-in driver of the NV6115, there is no need for an external driver, which further saves PCB space.

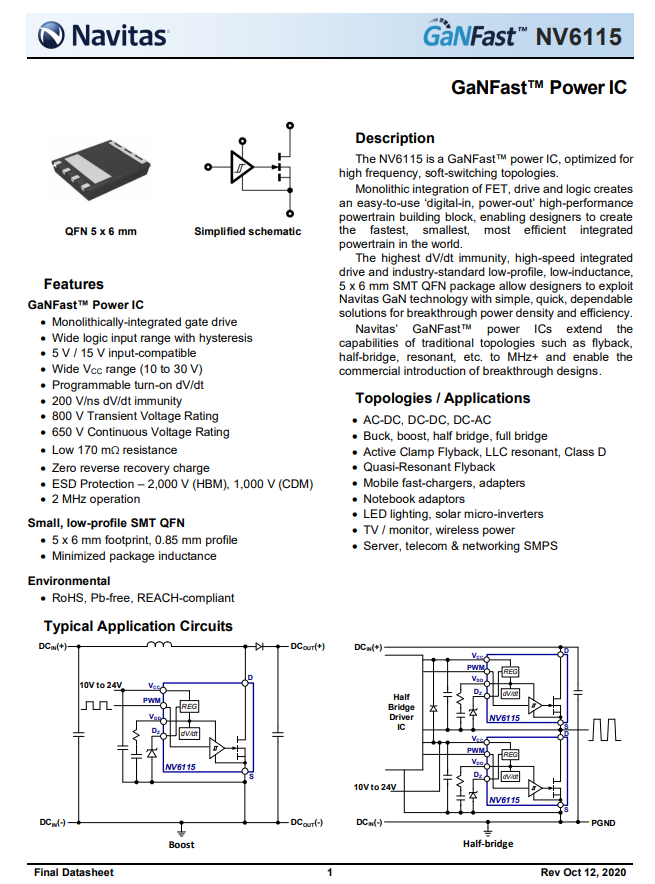

Detailed information of Nanomicro NV6115.

Charging Head Network Disassembly and understanding: The ASUS 2C1A 65W gallium nitride charger, Nubia 65W Deuterium Peak three-port gallium nitride fast charger, Rapoo 65W GaN fast charger, Xiaomi Type-C 65W GaN charger, OPPO 50W Cookie gallium nitride fast Charger, and RAVPOWER 65W also adopt the NV6115 from Nanomicro Semiconductor Products such as 1A1C gallium nitride fast charging charger, Belkin 68W dual C port GaN charger, Momis 65W 2C1A gallium nitride fast charging charger, and Youbi 30W 1A1C gallium nitride fast charging charger.

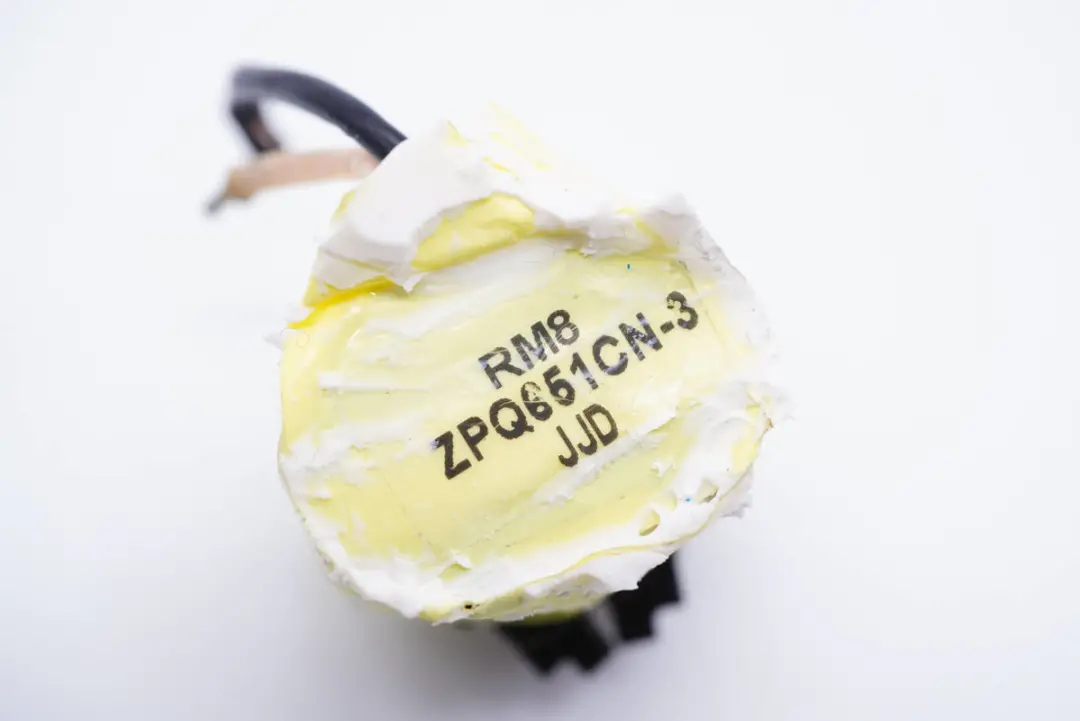

Close-up of the transformer.

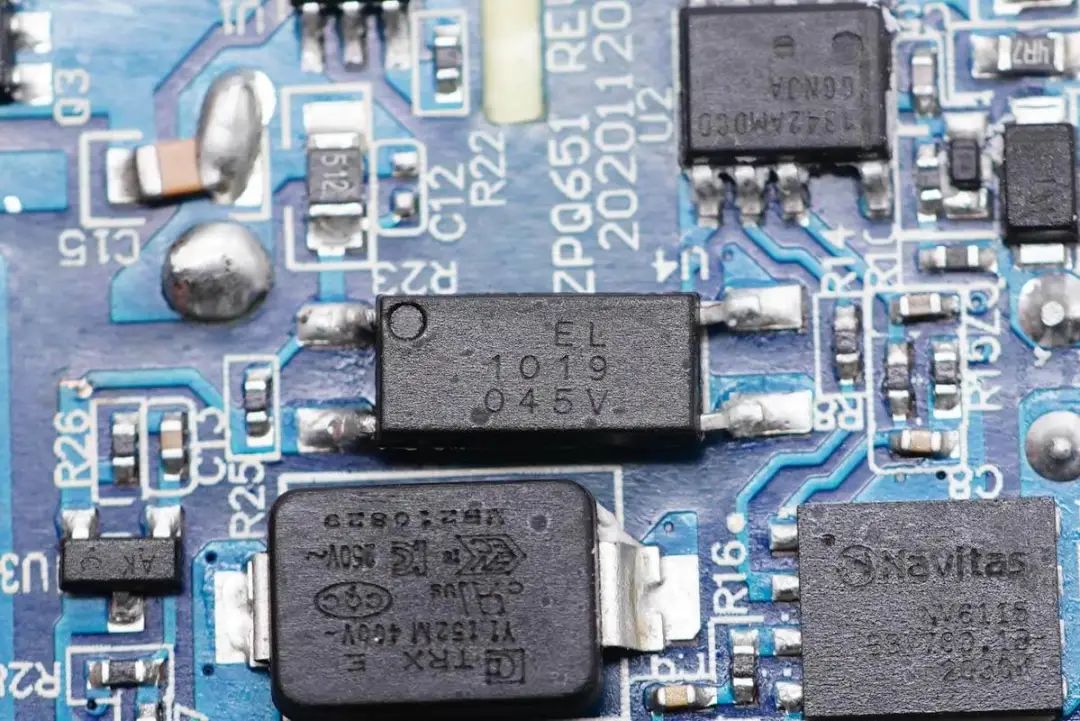

Everlight EL1019 optocoupler is used for primary and secondary communication and feedback output voltage.

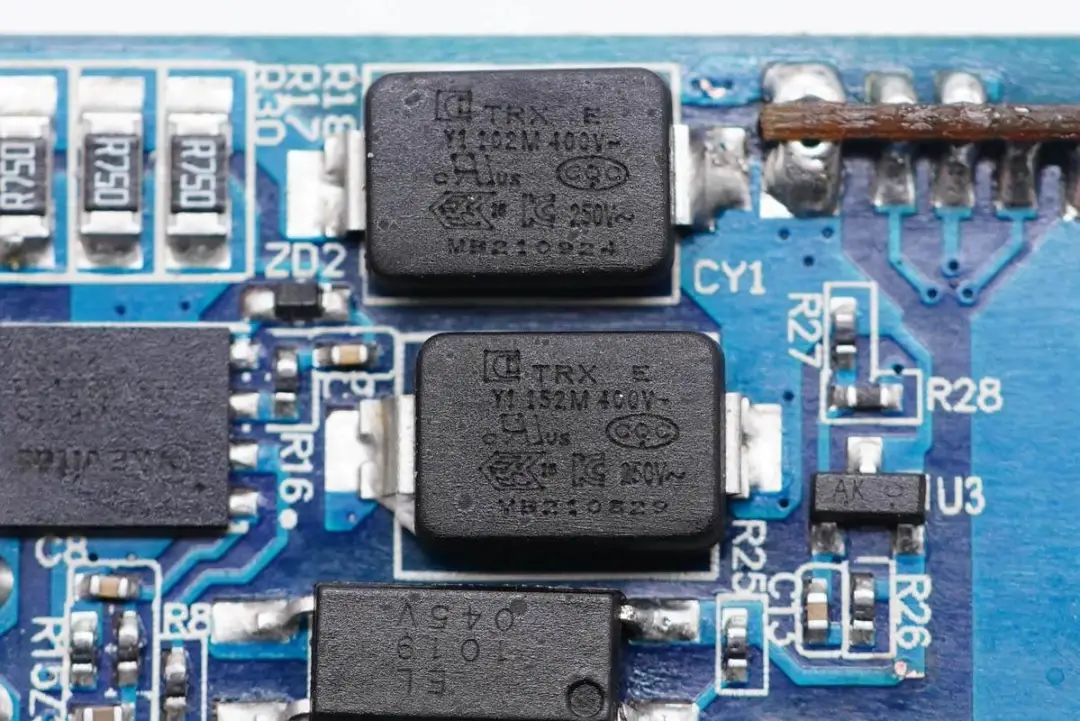

Two surface mount Y capacitors are from Sichuan Terui Xiang Technology Co., LTD. They feature small size and light weight, making them highly suitable for application in gallium nitride fast charging and small-sized high-density power supply products.

Trelight is dedicated to the research and development, production and sales of passive components, with a registered capital of 100 million yuan. It has two self-owned capacitor brands: SMD TRX and DIP TY capacitors. TRX will be committed to the research of ceramic materials to expand the application of more categories and provide more solutions for customers.

Charging Head Network has learned that in addition to being used in dozens of high-power chargers such as the 100W gallium nitride from Meiduoduo, the 65W Super Flash Charge gallium nitride charger from OPPO, the 90W gallium nitride fast charger from Lenovo, the 65W gallium nitride charger from Nubia, and the 120W gallium nitride + silicon carbide PD fast charger from Beix It can also be applied to 20W mini fast charging devices of brands such as Hailutong, First Guard, and Belkin, and its performance has been unanimously recognized by customers.

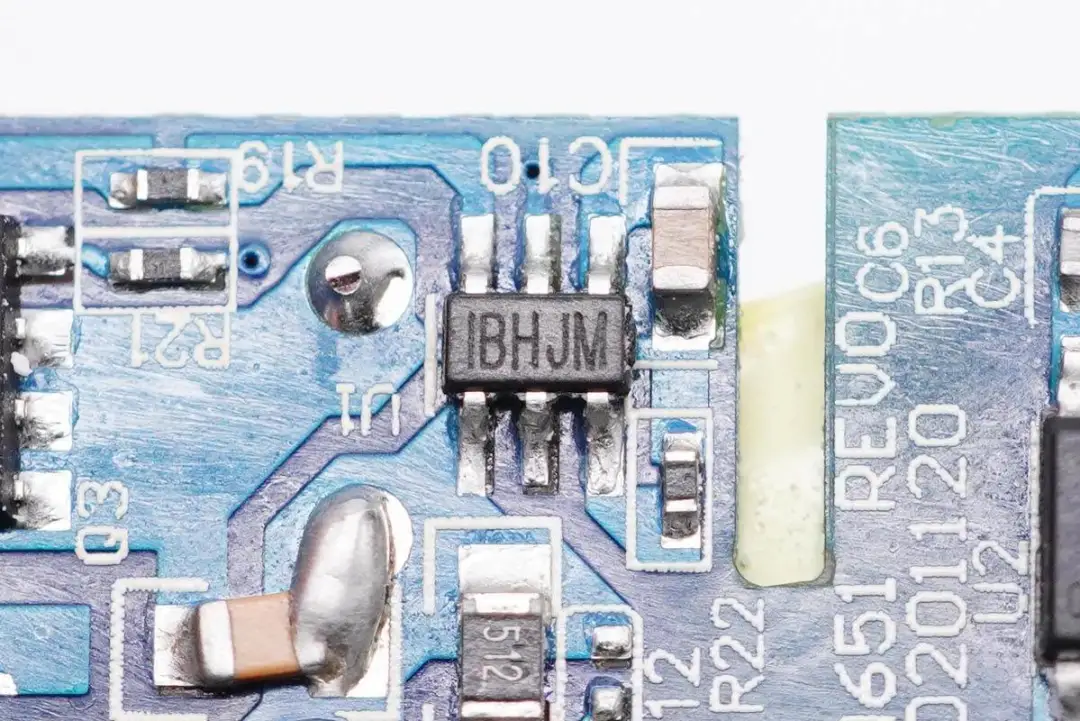

Silk-screened IBHJM secondary synchronous rectifier controller, actual model MP6908A, from MPS Core Source Semiconductor, with a maximum operating frequency of 600KHz, supports DCM, CCM, QR and ACF operating modes, and supports synchronous rectifier tubes driven by standard voltage and logic voltage.

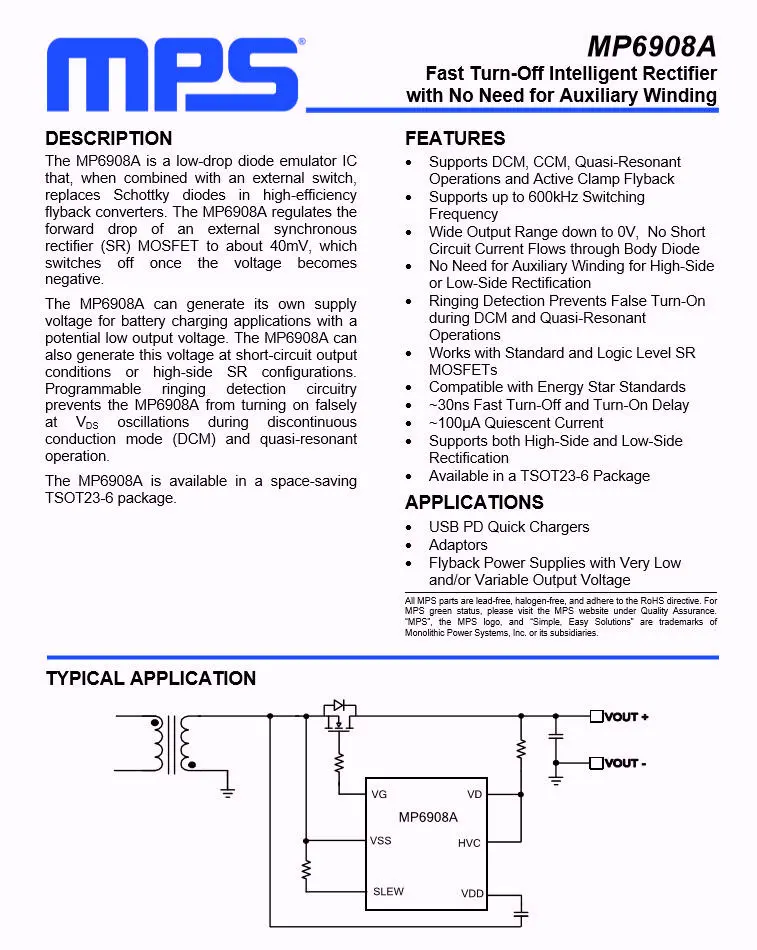

Detailed specification parameters of MPS MP6908A.

Charging Head Network Disassembly and understanding: Also adopting MPS MP6908A are Nubia 65W Deuterium Peak Gallium nitride Charger Pro, Nuts 65W Single C Port Gallium Nitride Charger, Lenovo 90W Flash Charging Dual Port Gallium Nitride Charger, Dell 90W Gallium nitride Charger, Lenovo thinkplus 65W Gallium Nitride Lipstick Power Supply Pro, Philips 65W Fast Charging Socket, etc.

In addition, the MPS synchronous rectifier chip is also used in the original 45W fast charging charger of Xiaomi 9 Pro, thinkplus 45W USB PD charger, thinkplus 65W Lipstick USB PD charger, ZMI 65W 2C1A desktop PD fast charging charger, and the original 45W USB of Google Pixelbook Dozens of products such as PD fast charging chargers have adopted it.

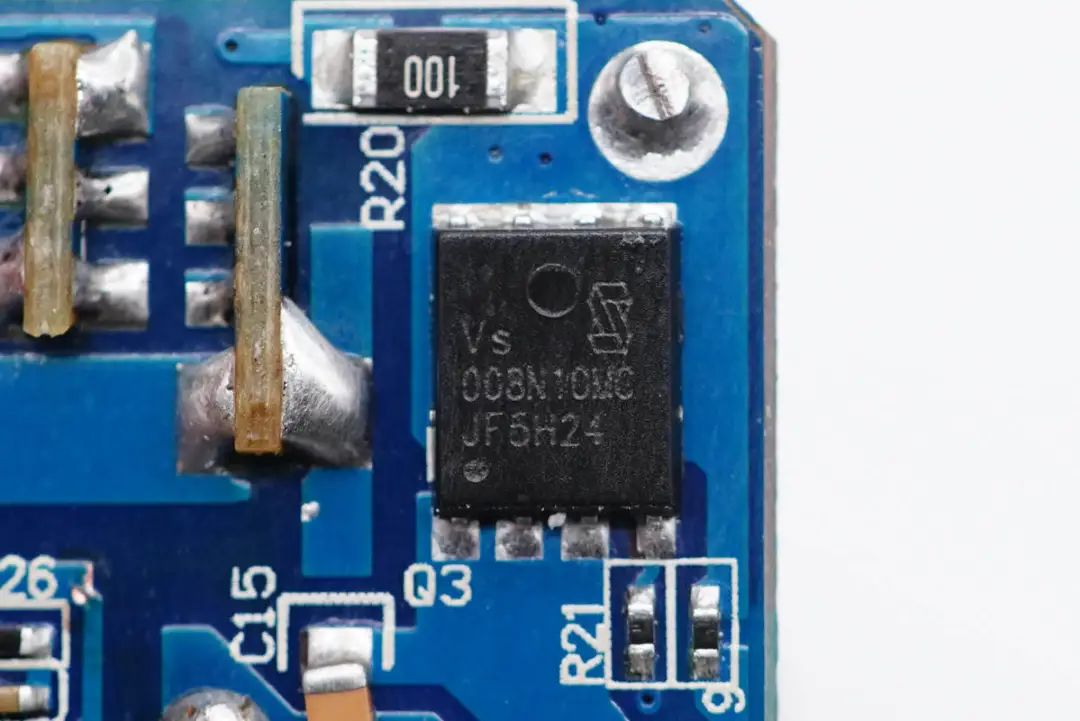

The synchronous rectifier MOSFET adopts VSP008N10MSC, NMOS, with a withstand voltage of 100V and a PDFN5x6 package.

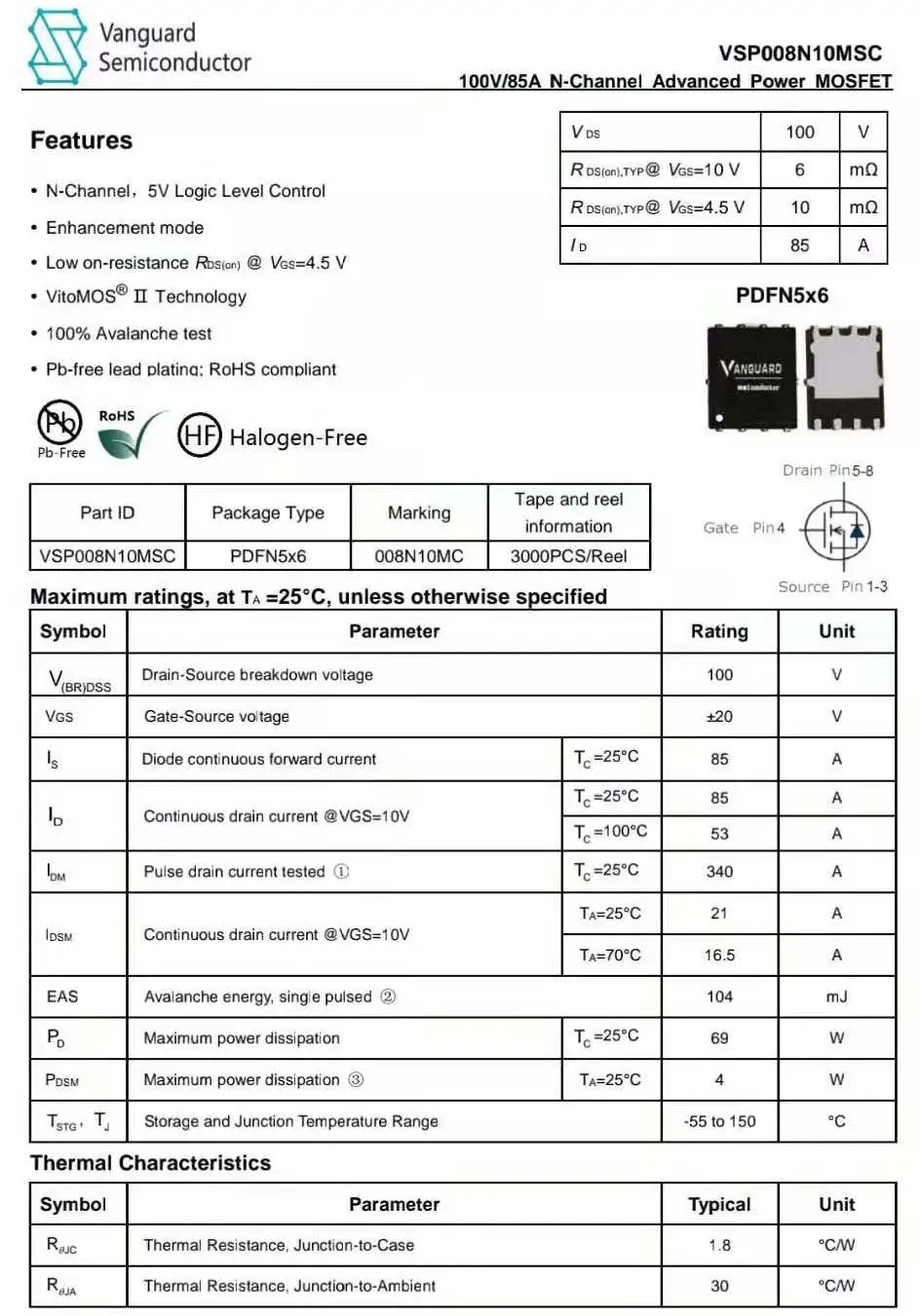

Data information of Weizhao VSP008N10MSC.

Charging Head Network disassembled and learned that products such as the Weizhao VSP008N10MSC also use the Miwu Zhenmiao 65W 2C1A gallium nitride charger, ASUS adol 65W gallium nitride charger, Nubia 65W Deuterium Peak three-port gallium nitride fast charger, and Lenovo 65W PD fast charging matchbox power supply. Weizhao MOS has also been recognized by many well-known brands such as Huawei, Xiaomi, Samsung, and OPPO.

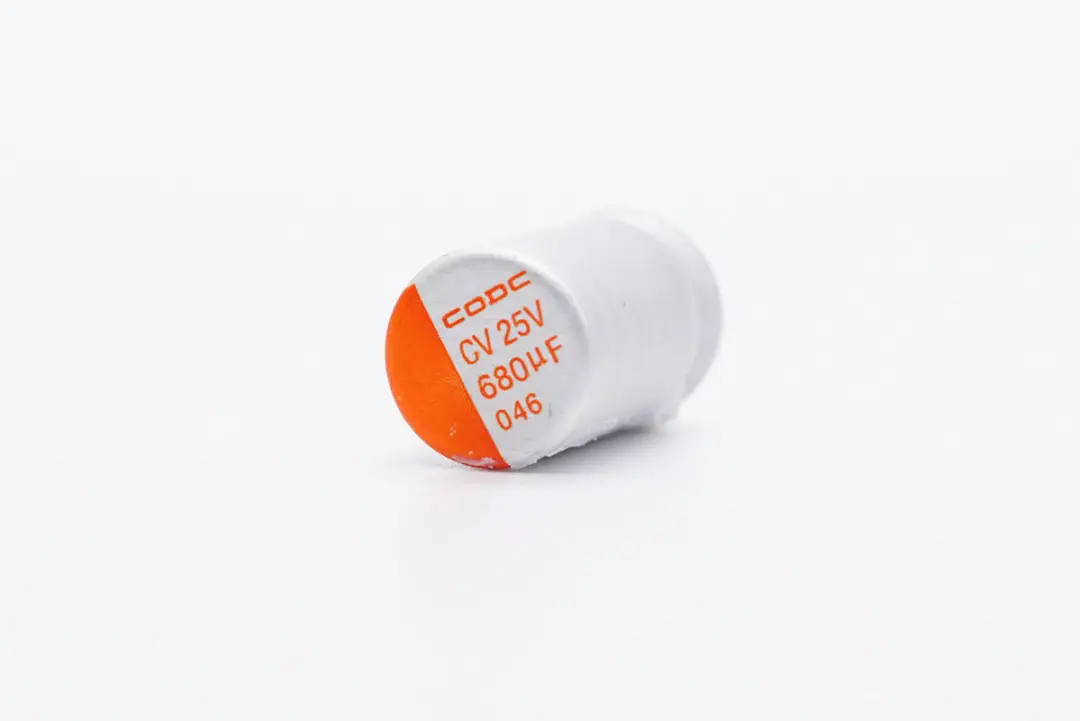

The synchronous rectification output filter solid-state capacitor is from Huarong Weiye, with a specification of 25V 680μF.

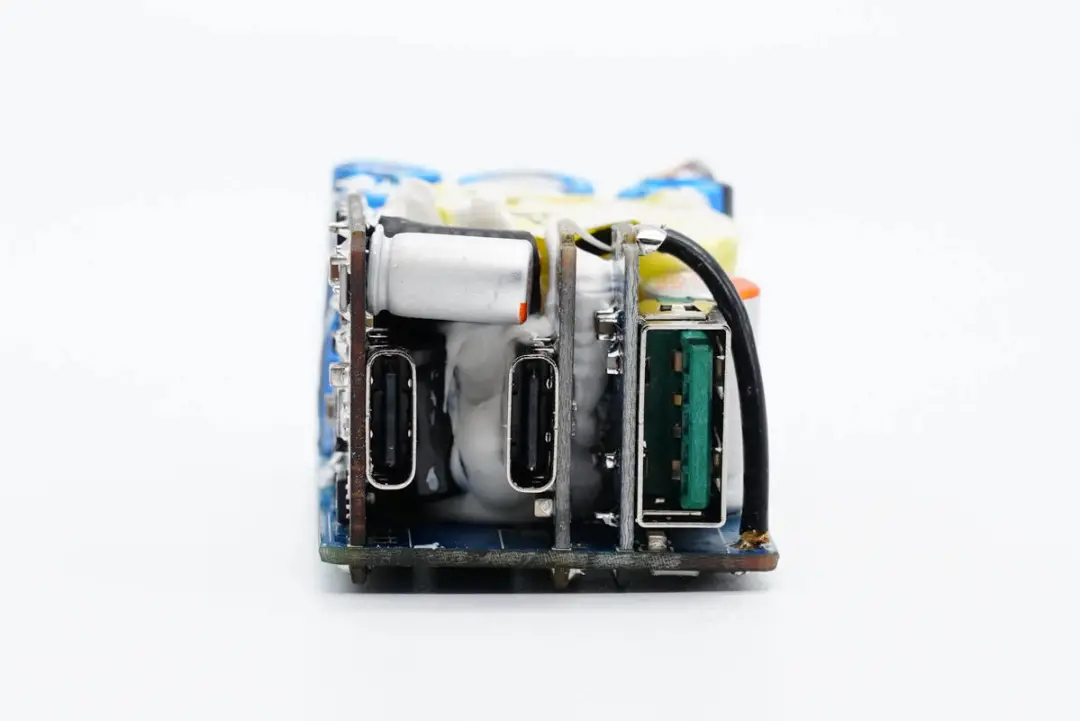

All three USB female ports at the output end are vertically welded with small boards, making full use of the internal space.

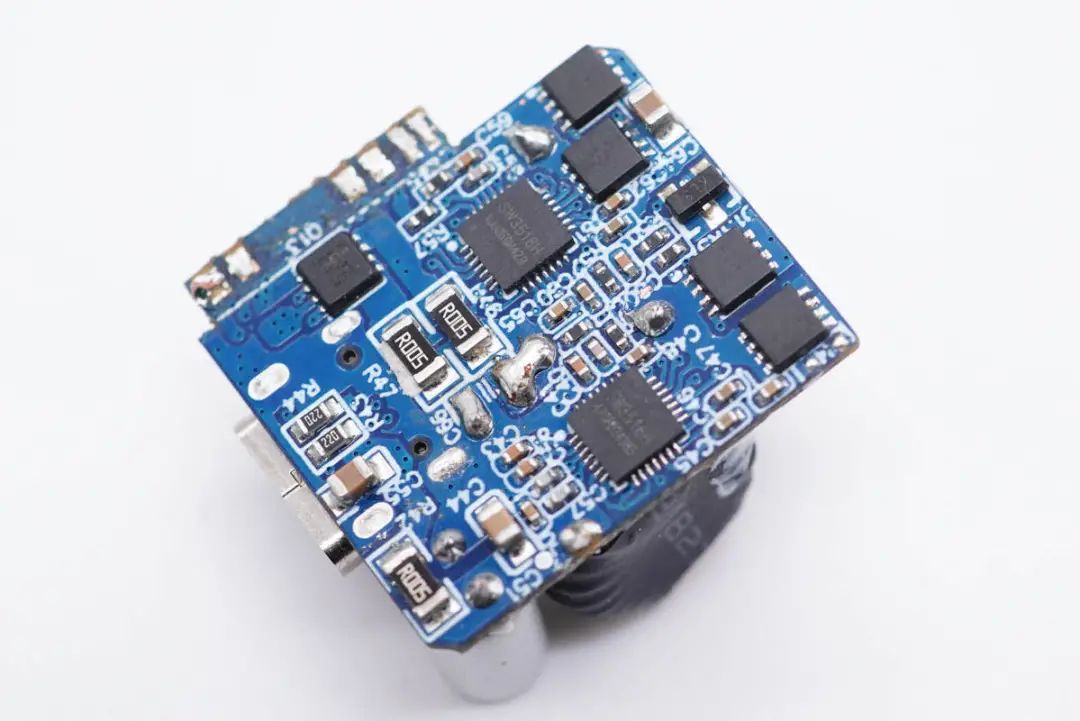

There are two secondary voltage reduction circuits on the back of the small board where the C1 female socket is located.

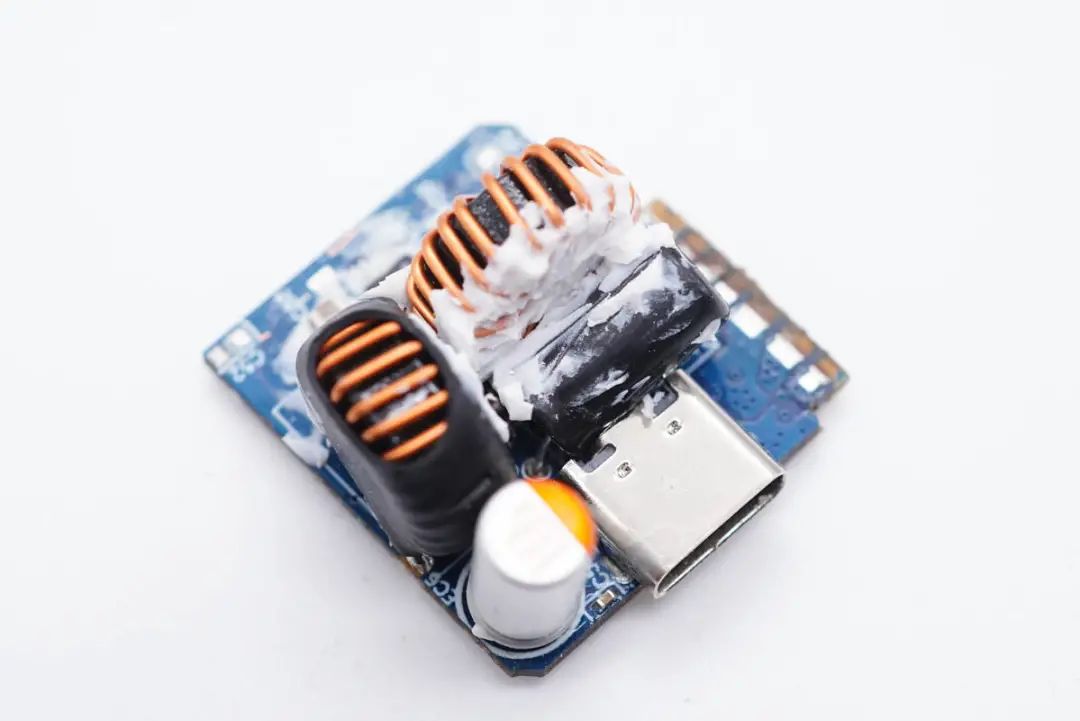

There are two corresponding step-down inductors and filter capacitors on the front.

Silk-screen MCU, information unknown, used for intelligent distribution of three-port output power.

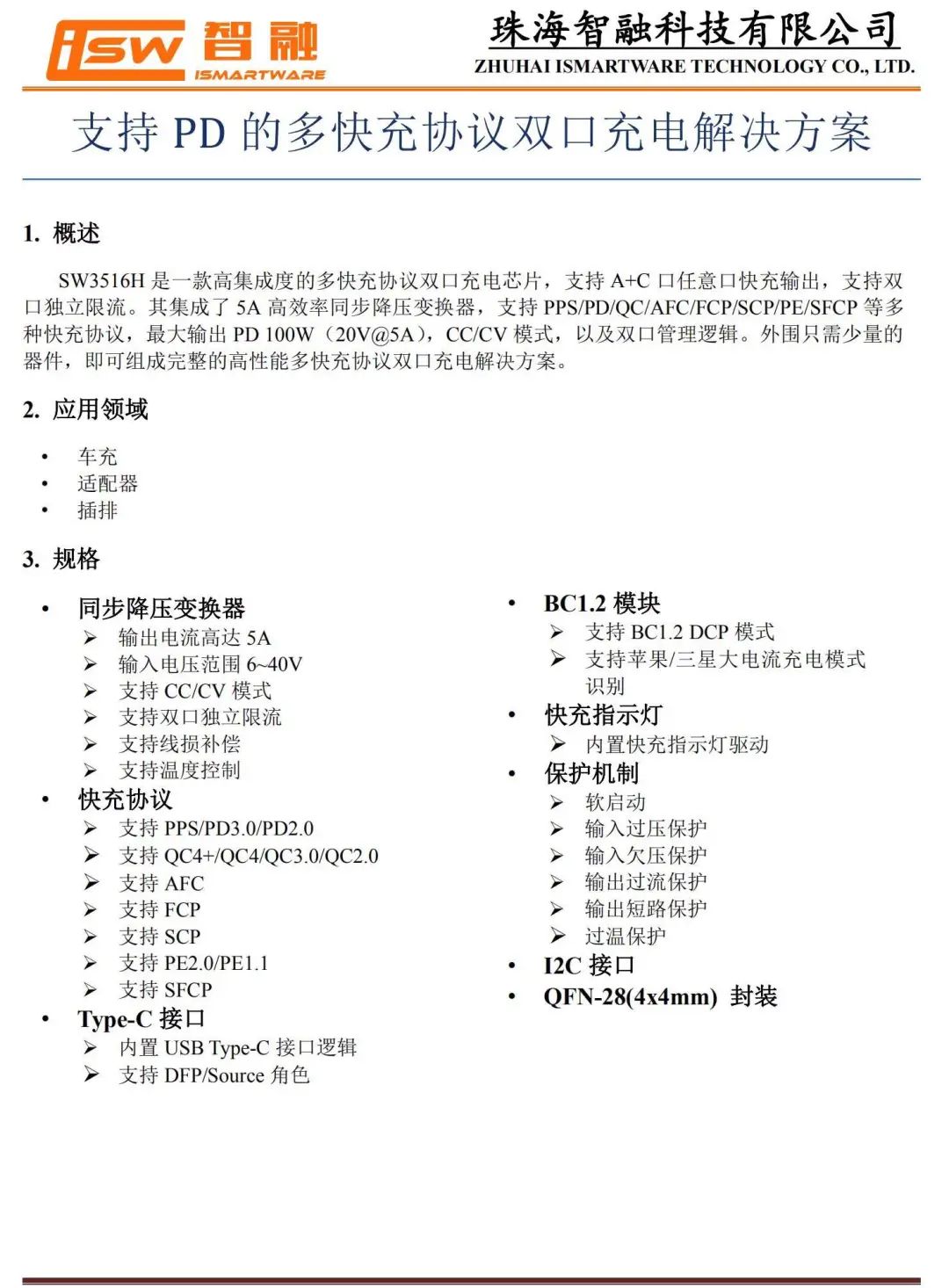

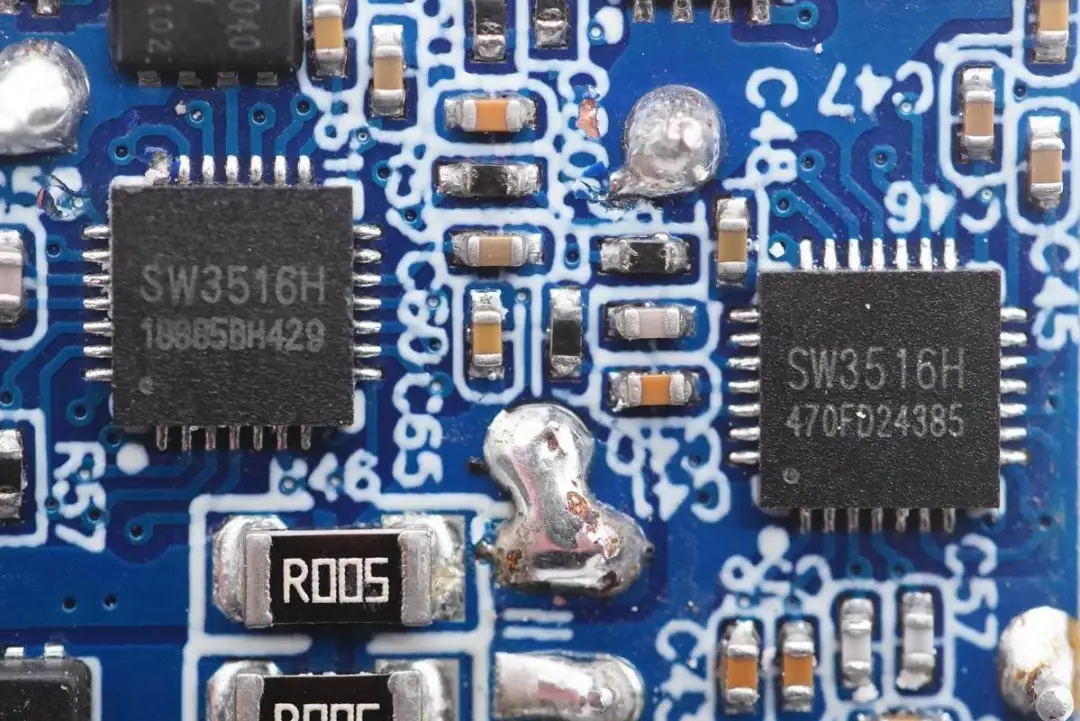

The main control chips of the secondary step-down circuits at port C1 and the other ports 1A1C both adopt Zhirong SW3516H, which are used for step-down control and protocol identification. The Zhirong SW3516H is A highly integrated multi-fast charging protocol dual-port charging chip that supports fast charging output from either A+C port and independent current limiting for both ports.

The SW3516H integrates a 5A high-efficiency synchronous step-down converter. Support AFC/FCP of PPS/PD/QC / / SCP/PE/SFCP wait for a variety of quick charge agreement, maximum output PD 100 w, CC/CV mode, and the double management logic. Only a small number of peripheral components are needed to form a complete high-performance multi-fast charging protocol dual-port charging solution.

Charging Head Network found through disassembly that The SW3516H has also been adopted by multiple products such as ASUS 65W 2C1A GaN charger, Nubia 65W Deuterium Peak three-port gan fast charger, Rapoo 65W GaN fast charger, UGREEN 65W 4C port gan fast charger, Lenovo 90W Flash Charging dual-port GAN charger, and Hongdashun 120W four-port 2C2A fast charger. In addition, Zhirong's fast charging chips can also be used in fields such as USB PD fast charging power banks and fast charging car chargers.

Both SW3516H devices are externally equipped with two MOSFETs to provide synchronous rectification and voltage reduction for the USB port output. The MOSFET is RUH4040M2 from Ruijun Semiconductor, with a withstand voltage of 40V.

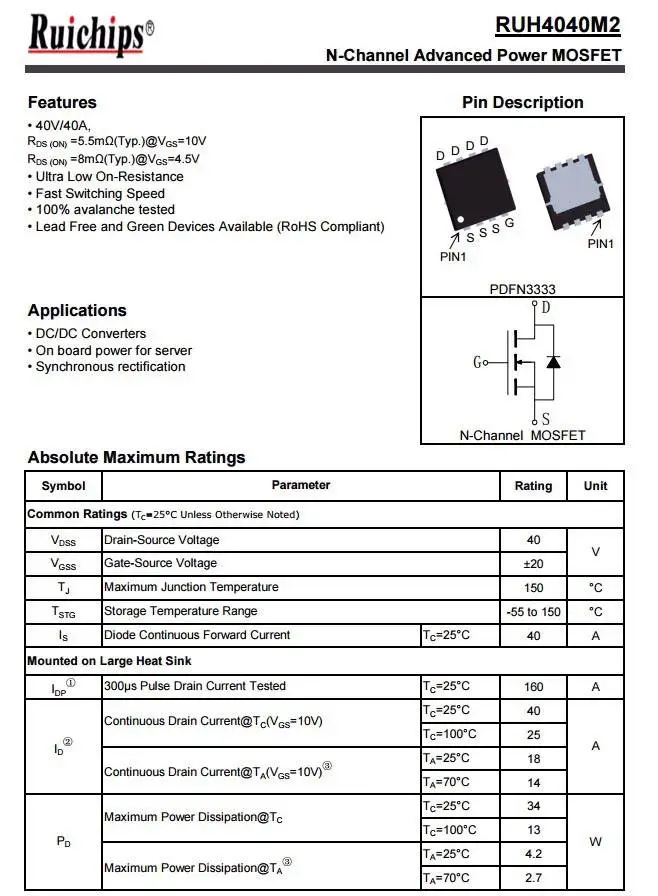

Information on the Ruijun RUH4040M2.

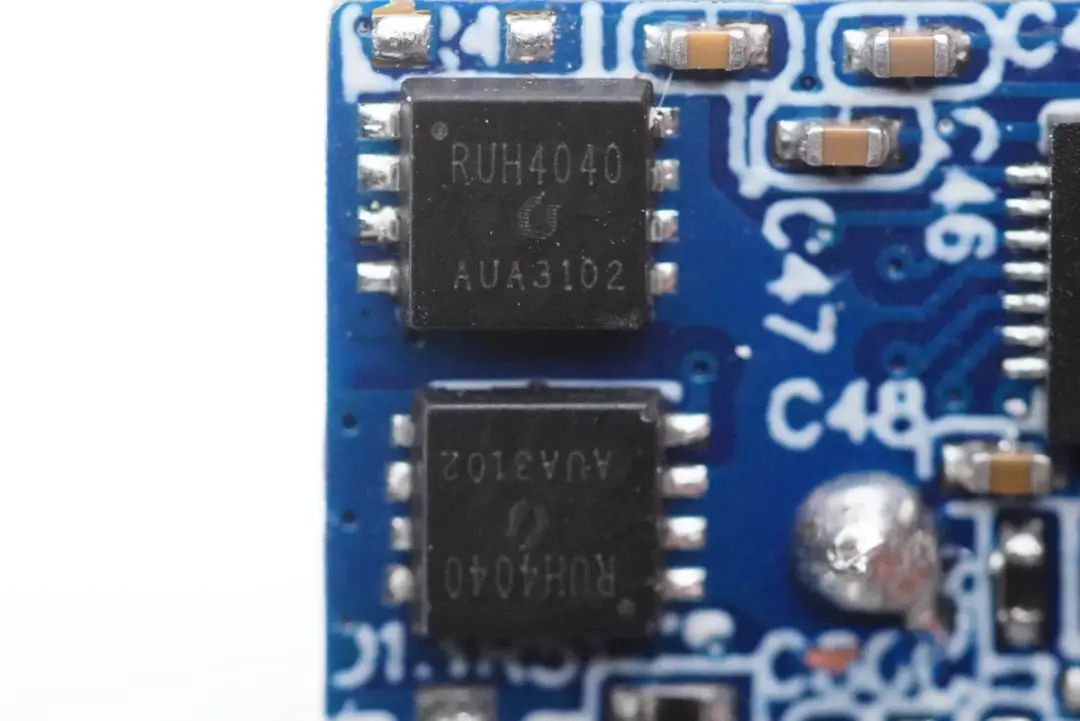

Another close-up of the Rui Jun RUH4040M2.

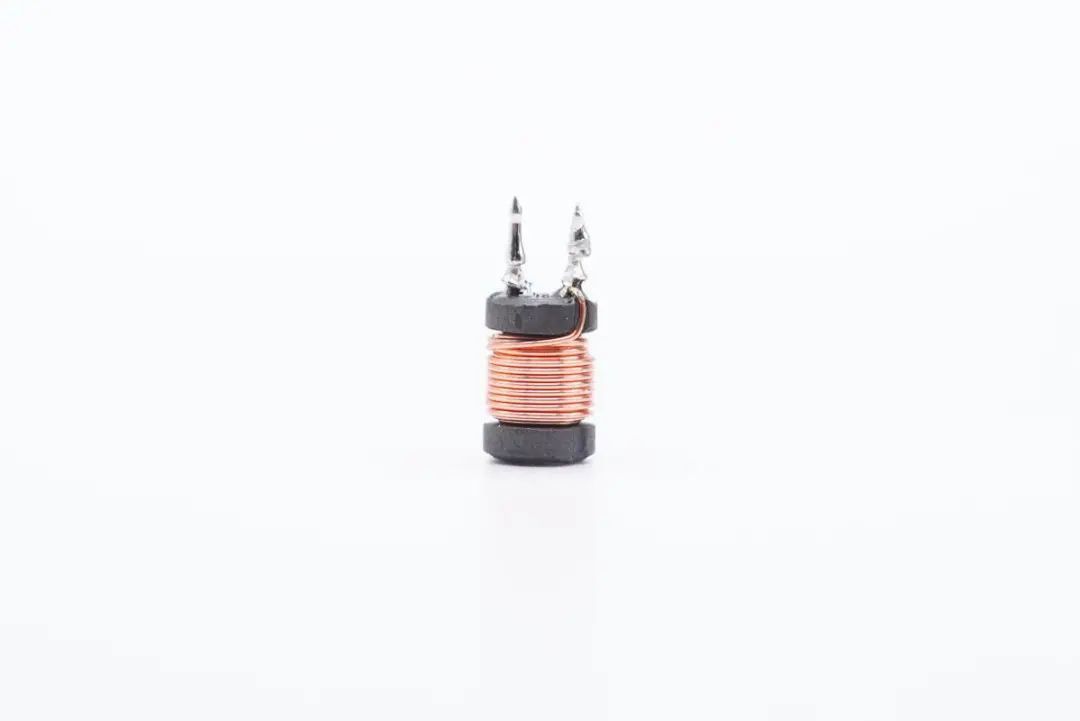

Close-up of the step-down inductor, with an outer heat shrink tube.

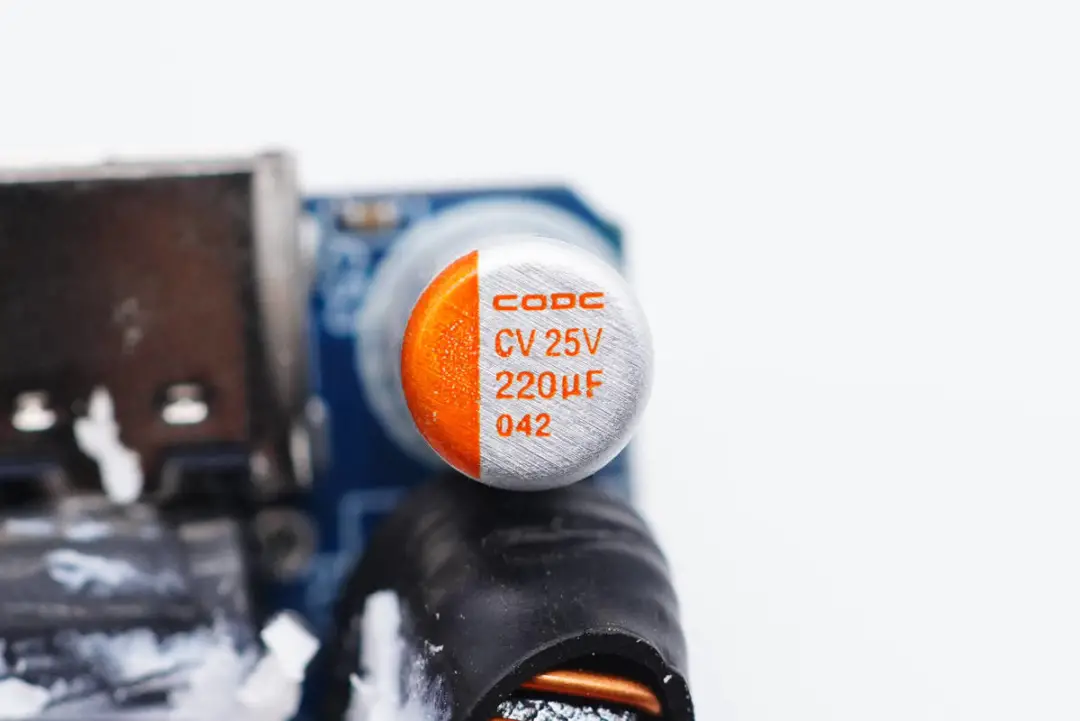

The step-down output filter solid-state capacitor is also from Huarong Weiye, with a specification of 25V 220μF.

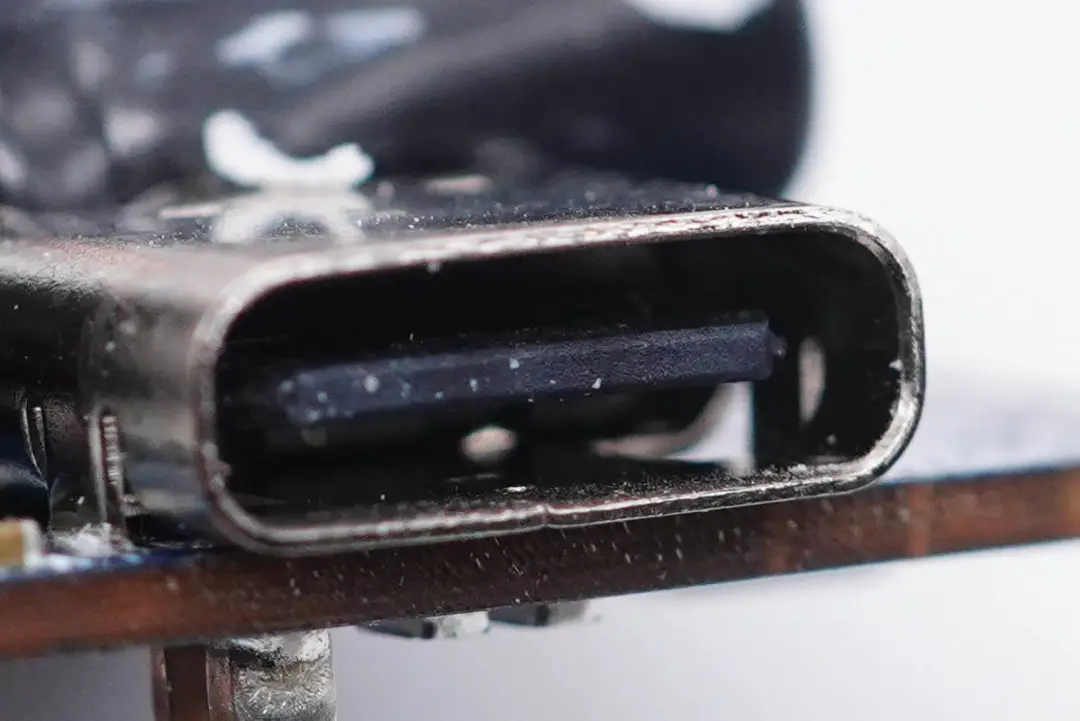

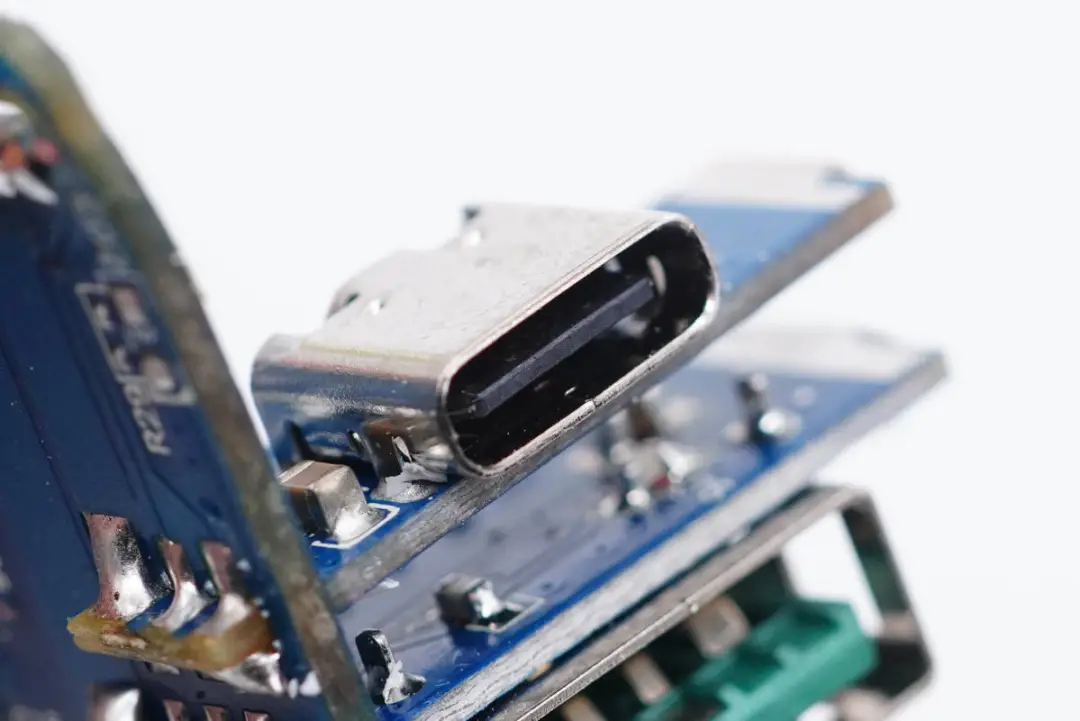

Close-up of the USB-C1 female socket, via soldering.

A close-up of the step-down inductor in another step-down circuit.

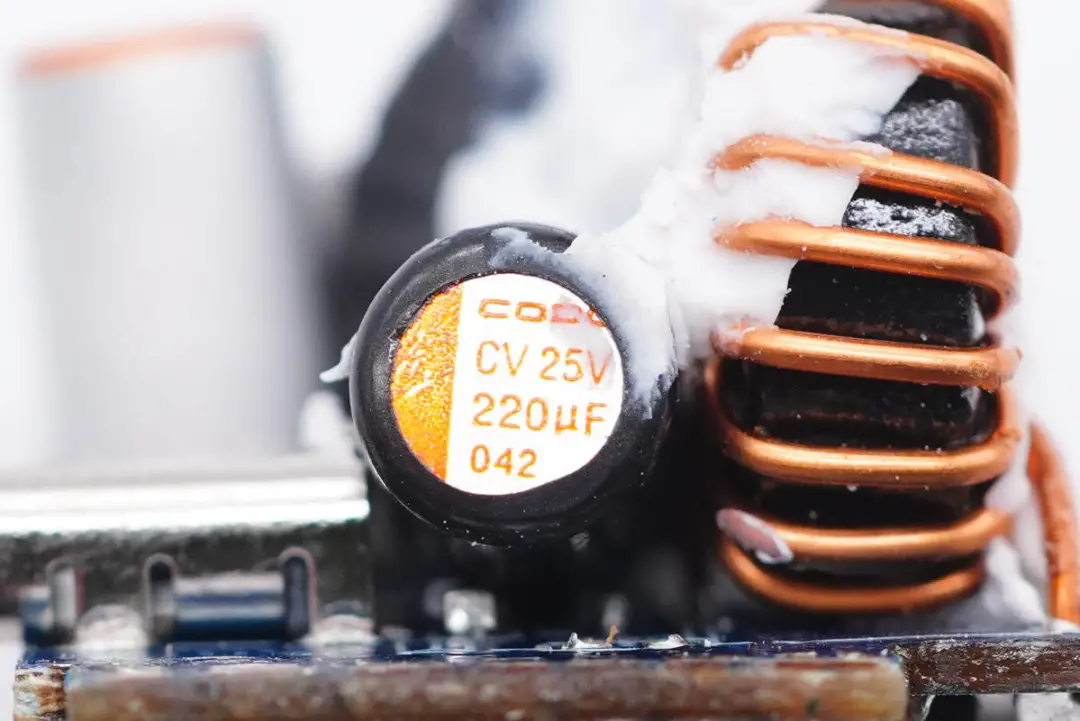

The solid-state capacitor is protected by an insulating tube on the outer jacket, with a specification of 25V 220μF.

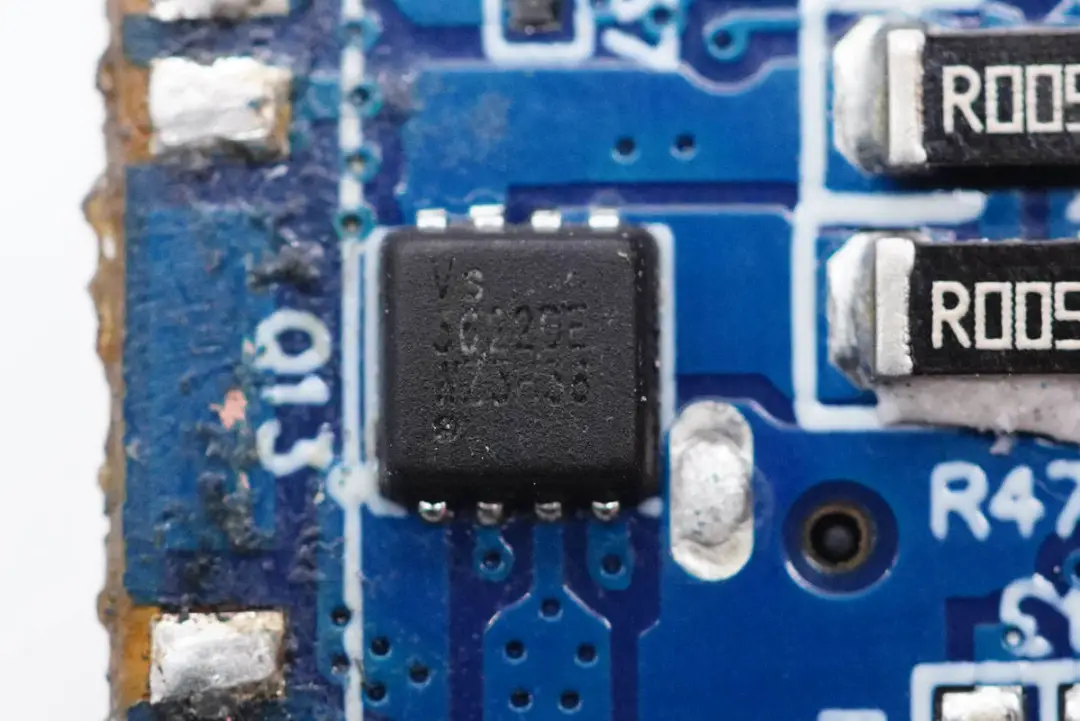

The VS3622DE from Weizhao Semiconductor features dual NMOS transistors with a withstand voltage of 30V and is packaged in PDFN3333. Here, it serves as an output VBUS switch for the USB-C2 and USB-A ports.

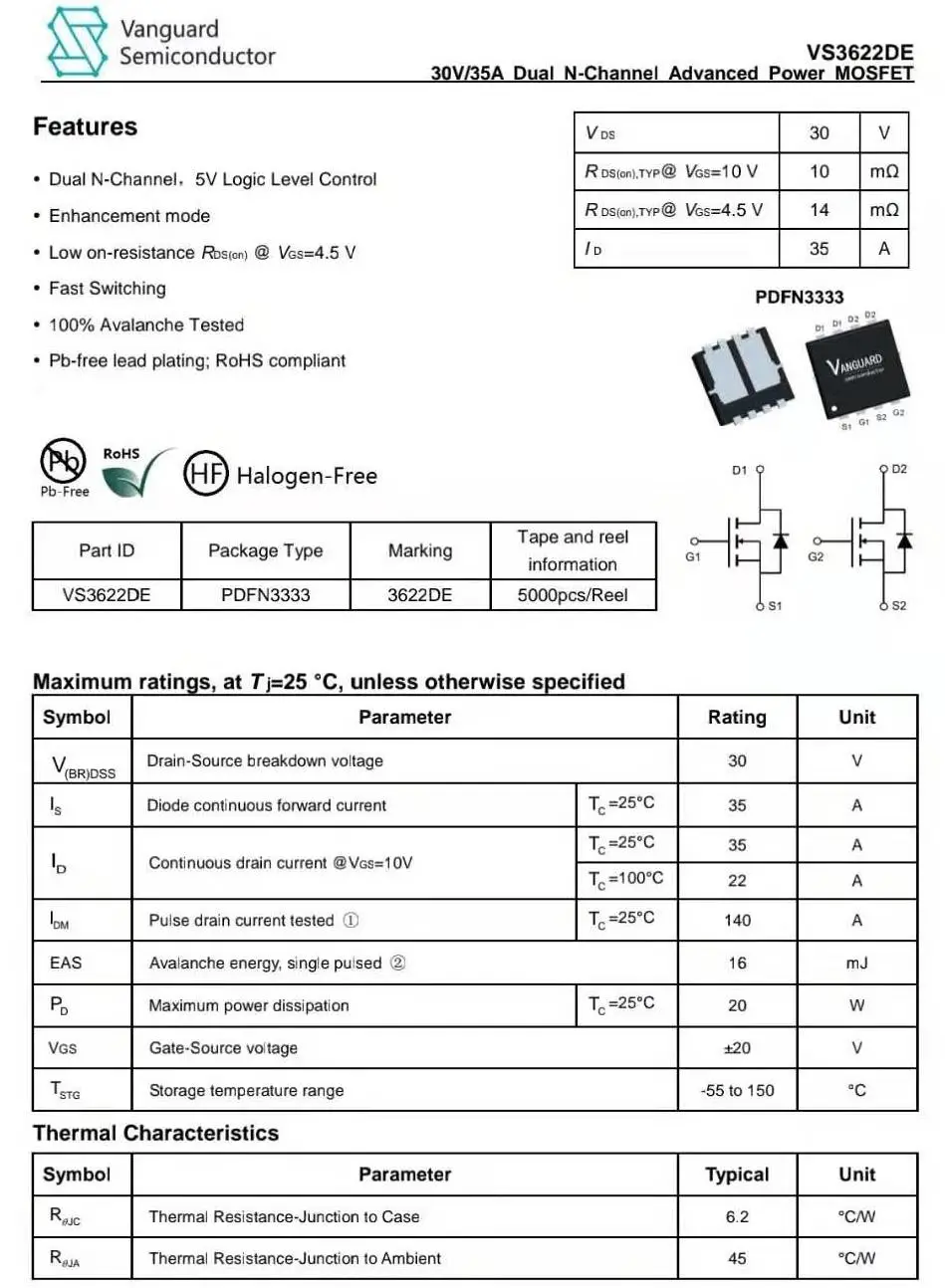

Data information of Vizhao Semiconductor VS3622DE.

Close-up of the USB-C2 female socket.

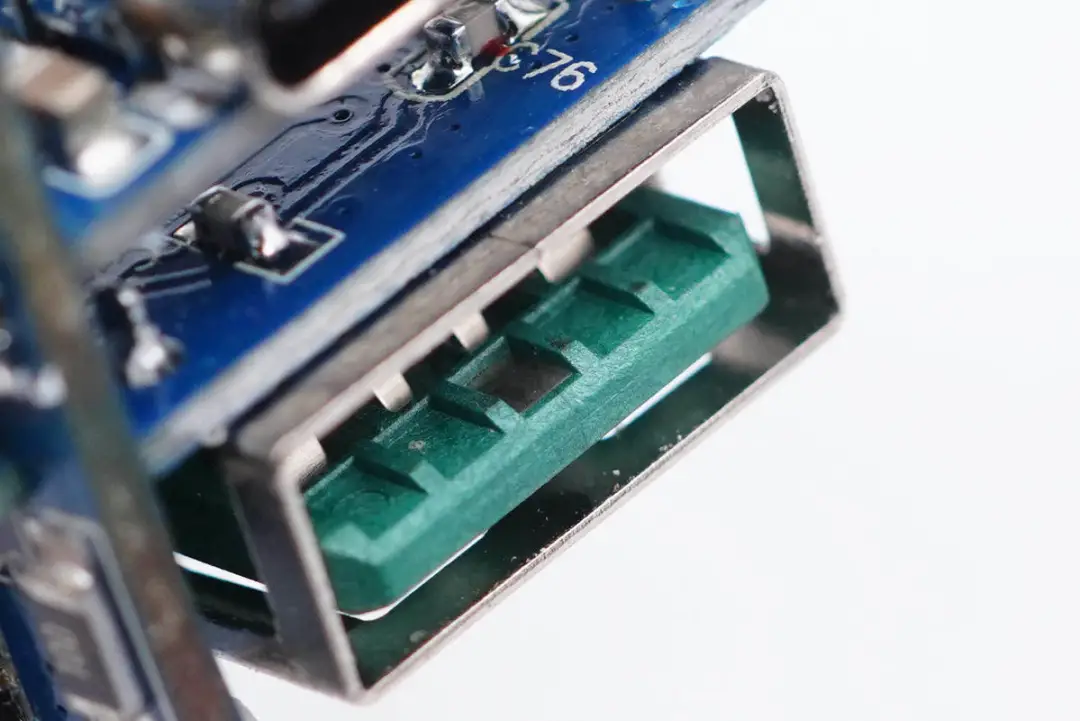

Close-up of the USB-A female socket, with special contacts at the front end of the tongue plate.

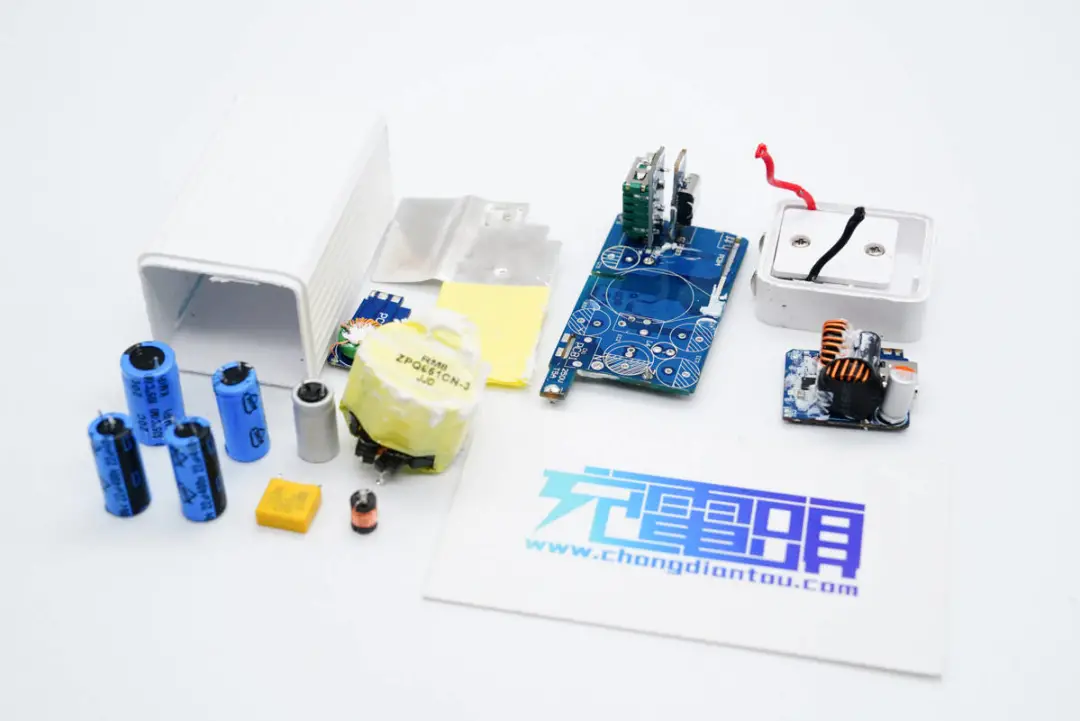

Everything has been disassembled. Let's take a family photo.

Charging Head Network Disassembly summary

The new 65W gallium nitride charger SuperPort S3 Pro from ZENDURE continues the Roma Zhu ID design in appearance, but is smaller in size. In terms of performance, it closely follows the current popular 20W market and supports the dual fast charging requirements of iPhone 12 and laptops. In addition, the charger supports mainstream fast charging protocols such as QC, AFC, FCP, SCP, PE2.0, PD and PPS, with excellent overall compatibility. It can meet the fast charging needs of the vast majority of devices on the market. The dual C ports support blind power insertion, making it convenient to use.

Charging Head Network has learned through disassembly that as a columnar charger, it adopts a classic three-section layout design inside, with clear layers. Small boards are set at the input and output ends to make full use of the internal space. Secondly, the charger adopts a switching power supply plus two DC-DC architectures, which is also very typical.

The switching power supply is composed of a main control from ON Semiconductor, a NAVitas NV6115 gallium nitride power chip, and an MPS synchronous rectifier controller with a Weizhao rectifier tube. The solution is mature and reliable. Both secondary step-down circuits at the output end adopt Zhirong SW3516H and Ruijun RUH4040M2, and the overall materials used are mainstream.
